Pitch (perspective control) , Roll (leveling) and Yaw (panning) can be achieved via the use of geared design in these 3 directions, allow independent control as well as precise movement to achieve pinpoint composition often required by architectural and product macro photographers. By releasing the pitch/roll quick release lever, one can have quick adjustments in the respective pitch/roll axis, then lock it, and use the large knobs for final precise adjustments.
The horizontal, tilt and vertical axes are controlled separately. These mechanisms are located below the camera and allow you to search for the best level before taking pictures. Some photographers use them as inseparable micron motion patella to appreciate their compactness and the extreme accuracy of micron motion, especially in architecture and studios.

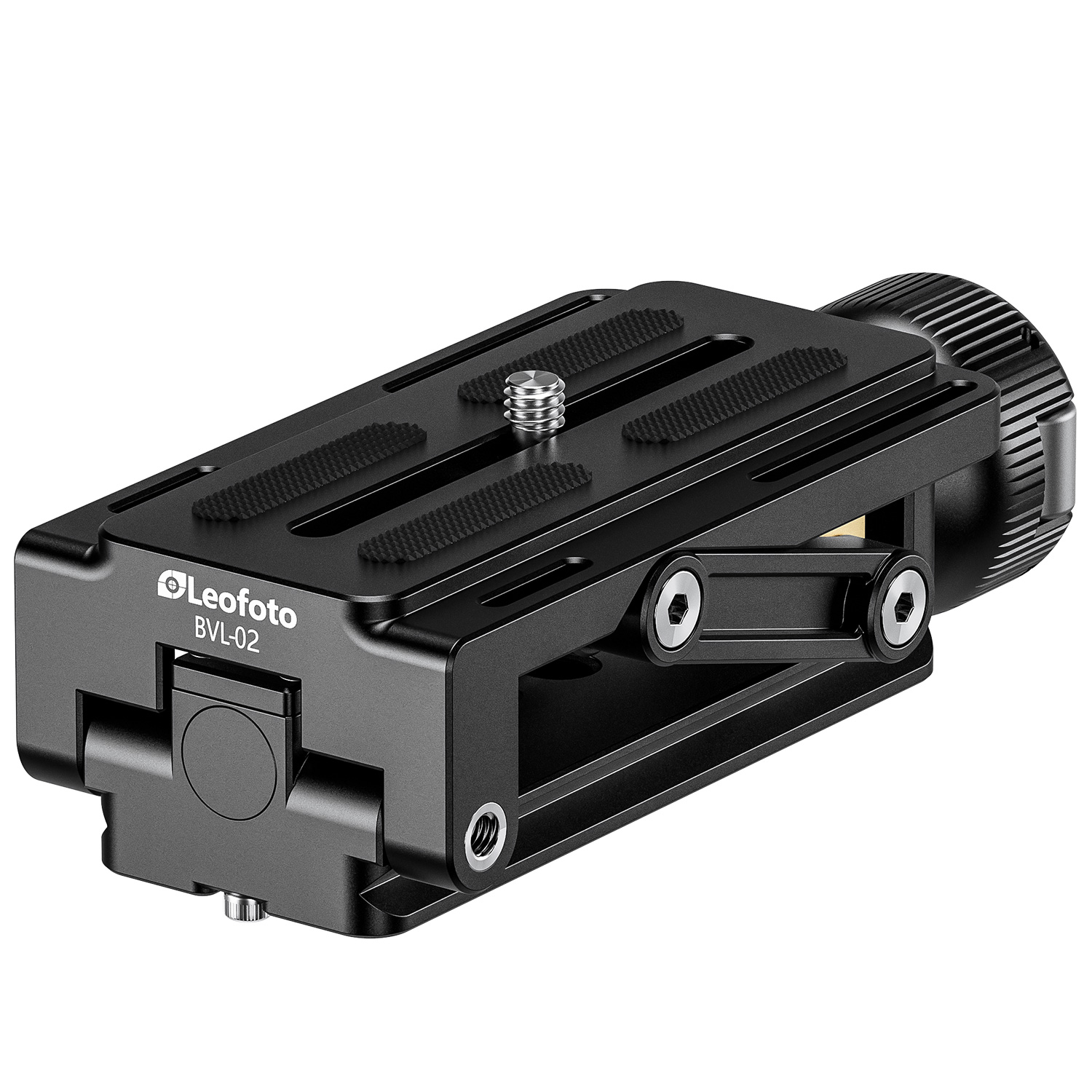

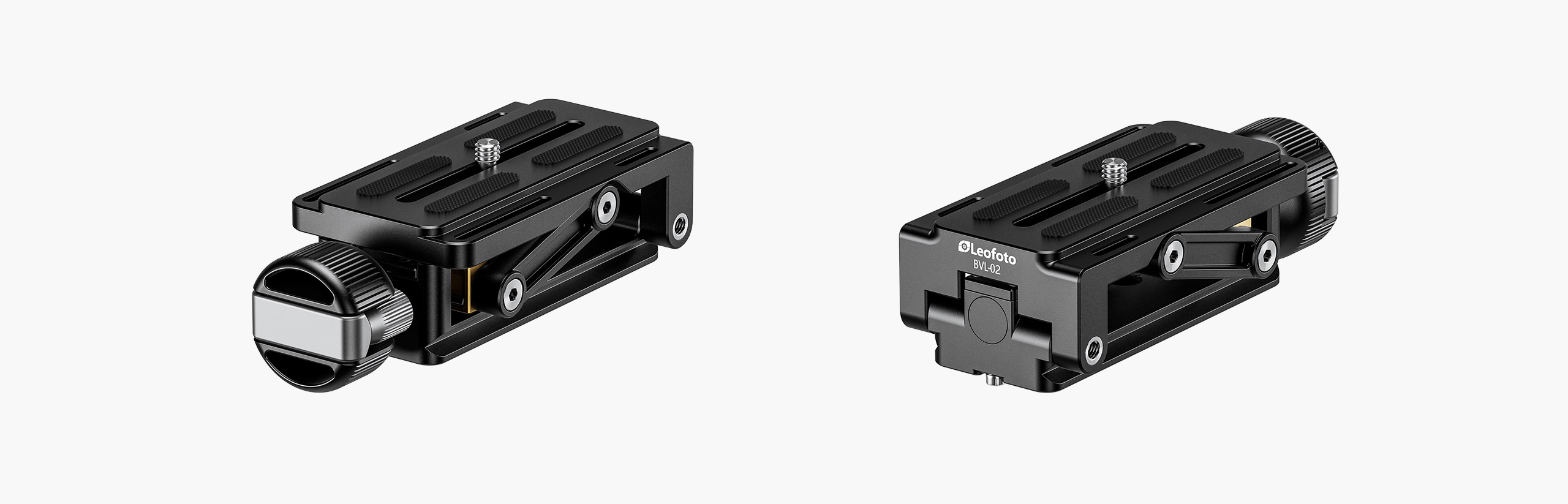

BVL-02

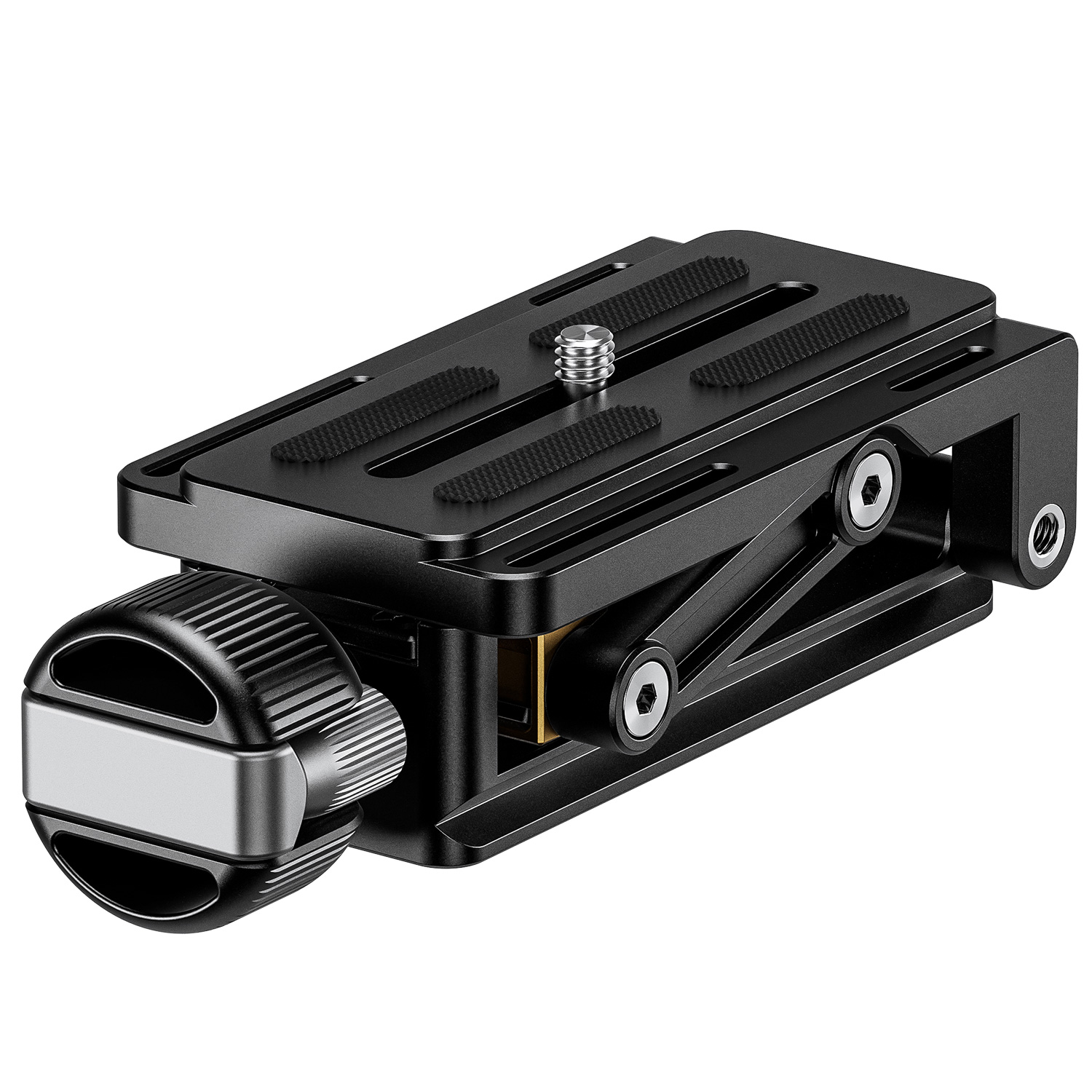

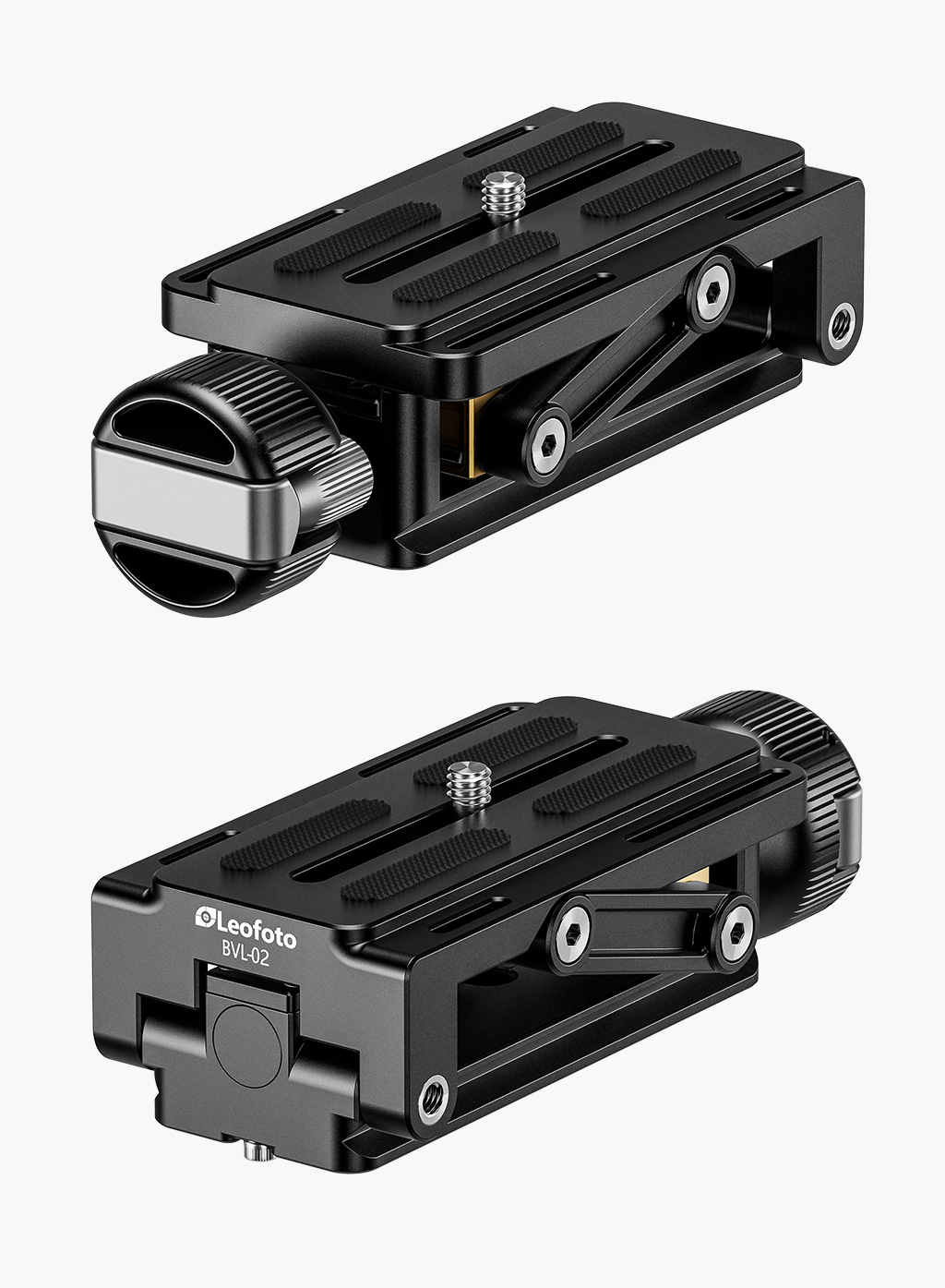

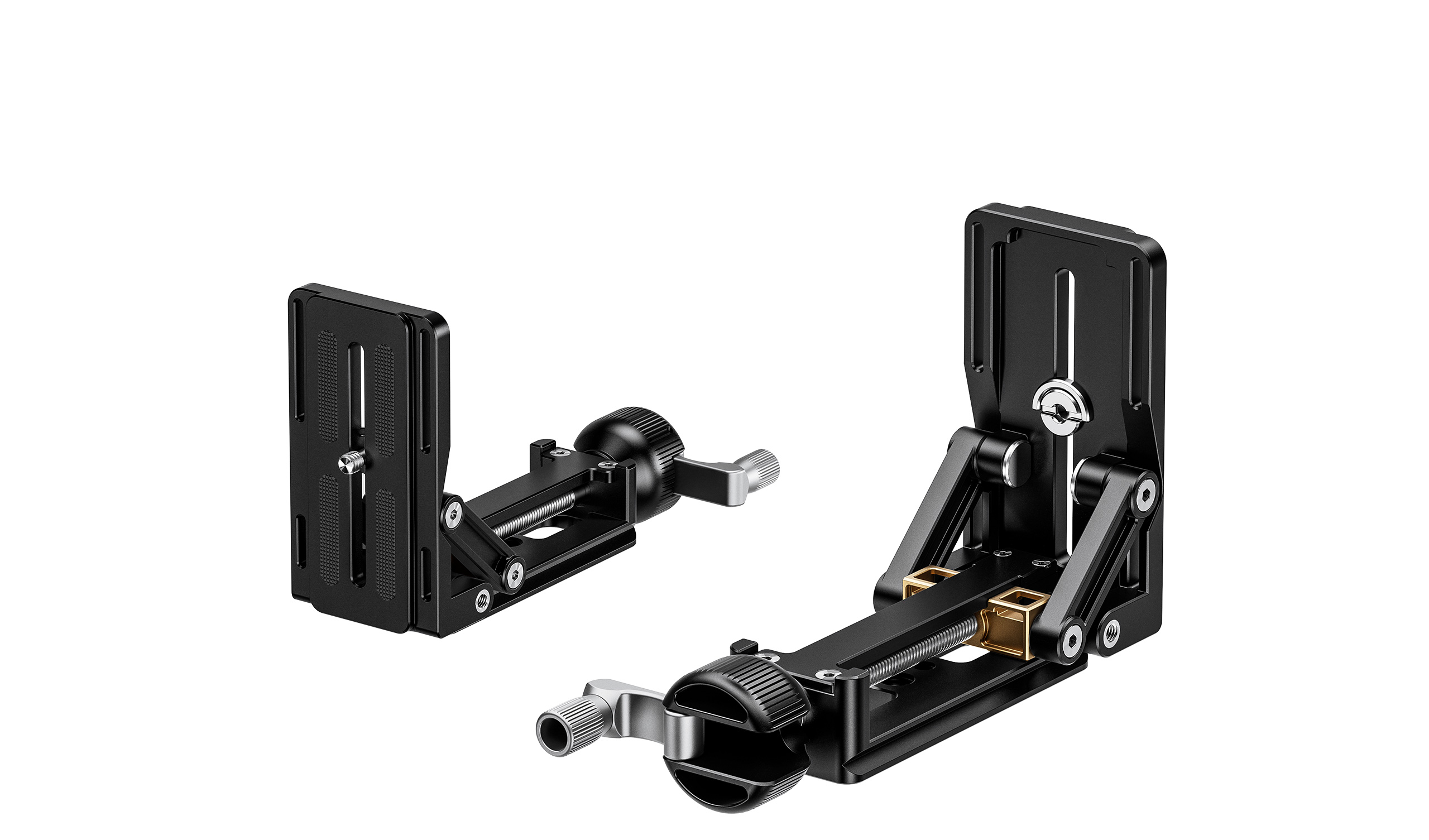

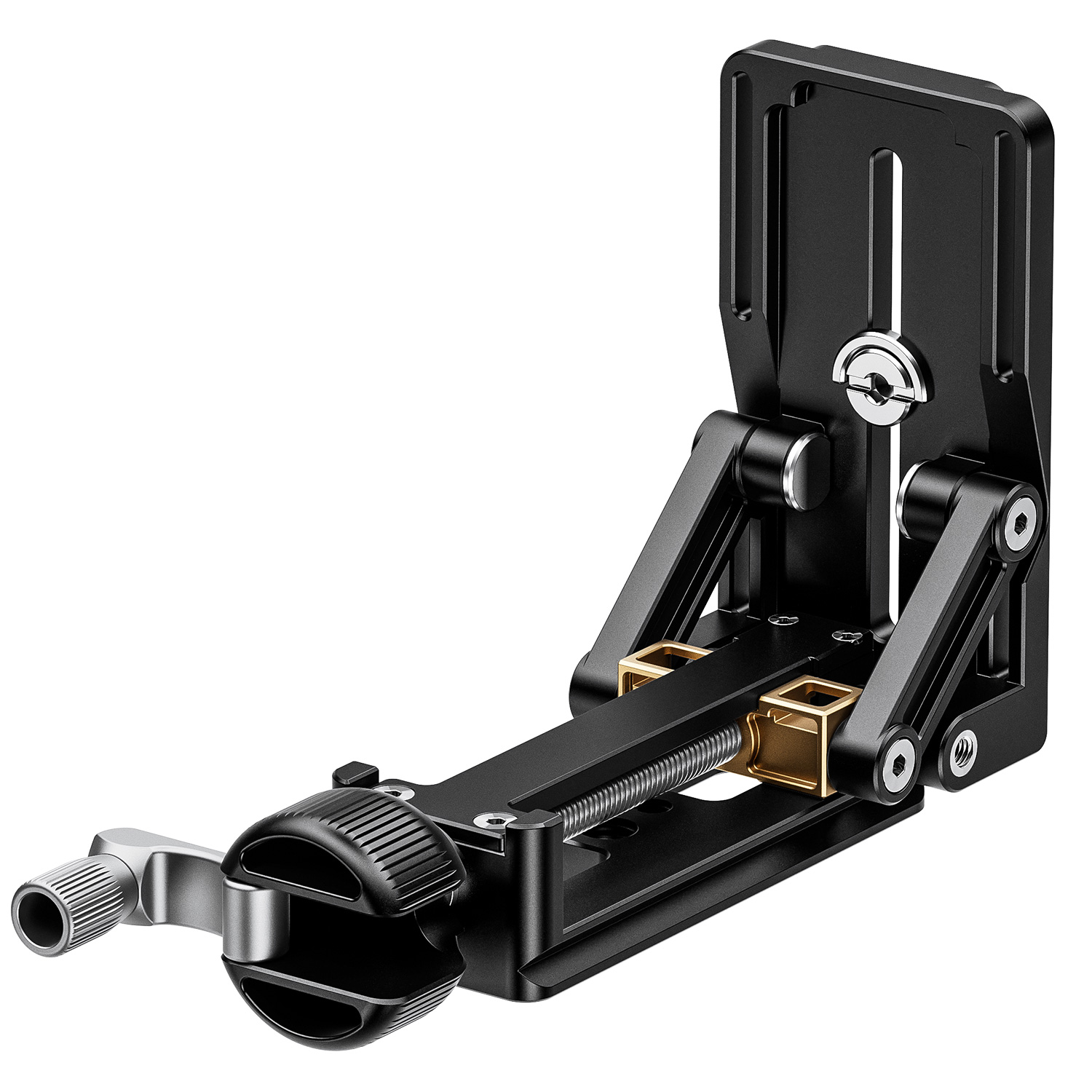

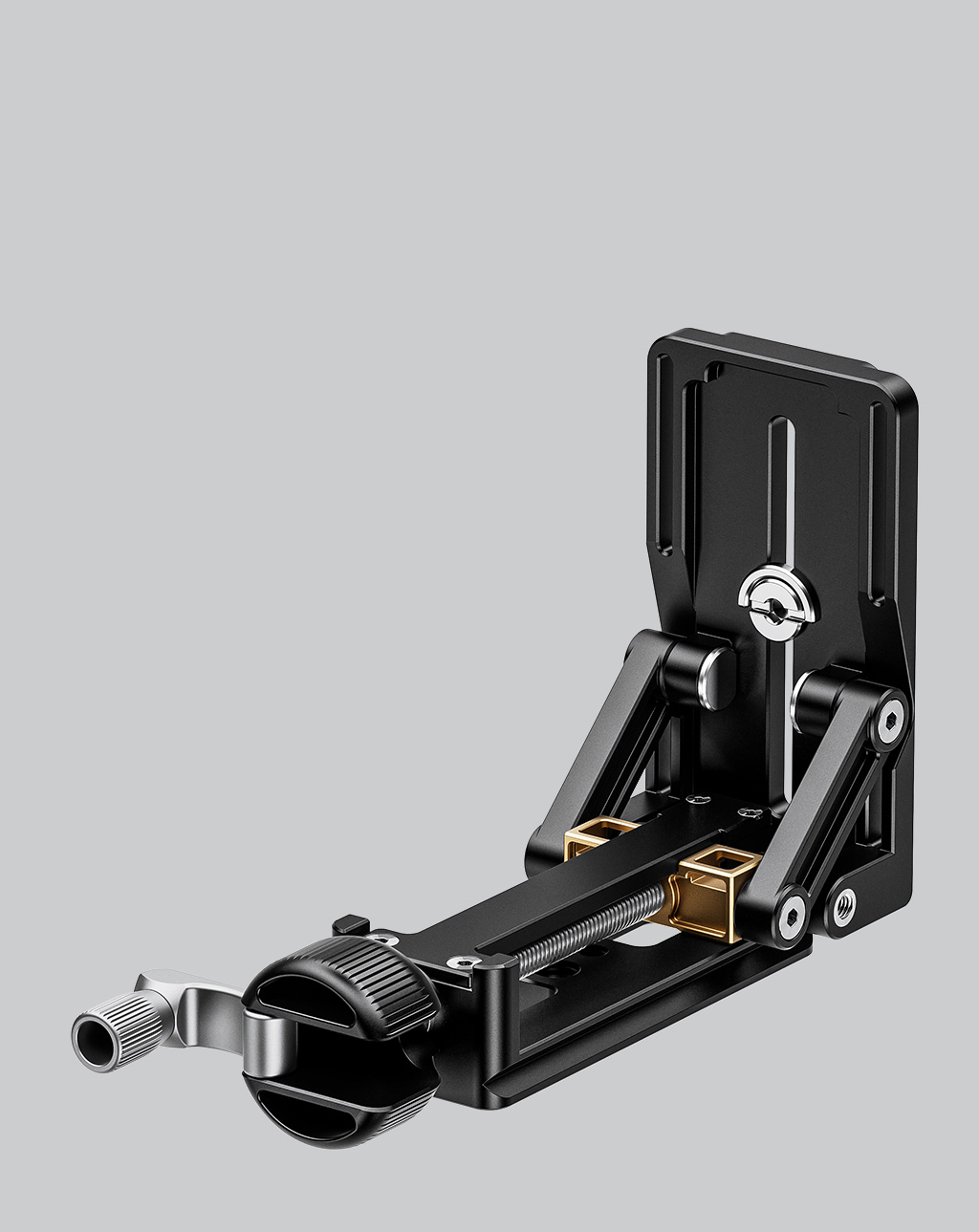

Tilt Adapter with Crank Handle

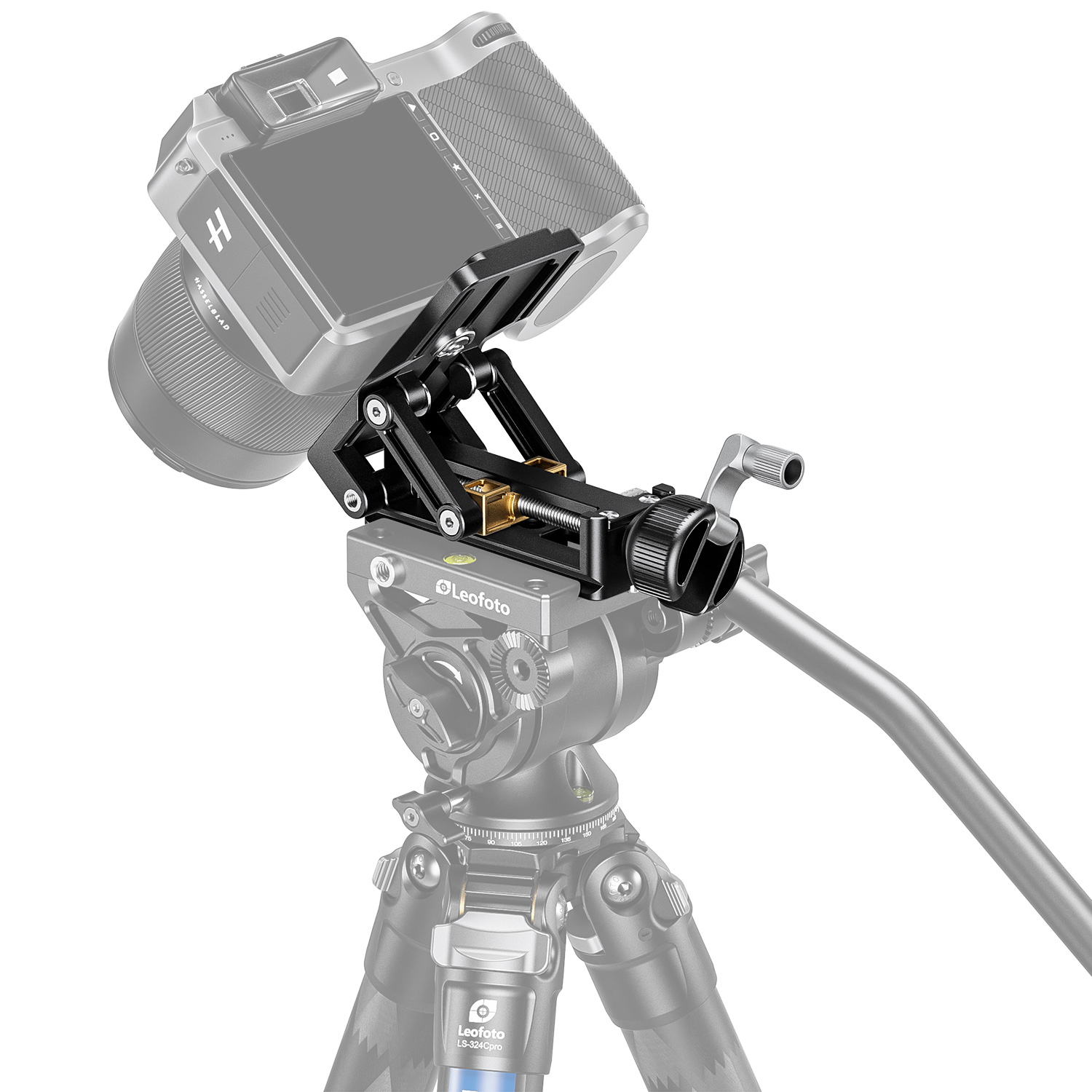

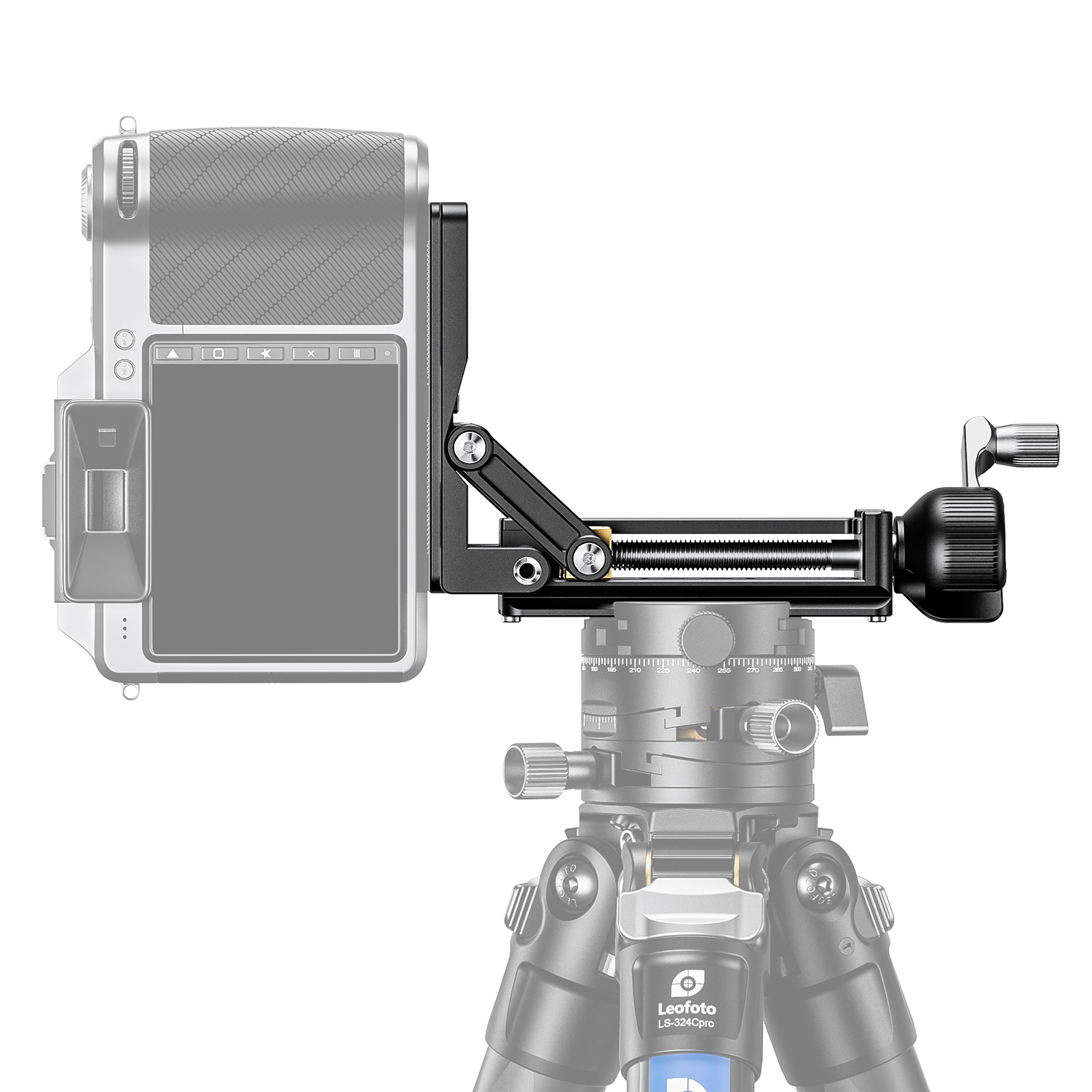

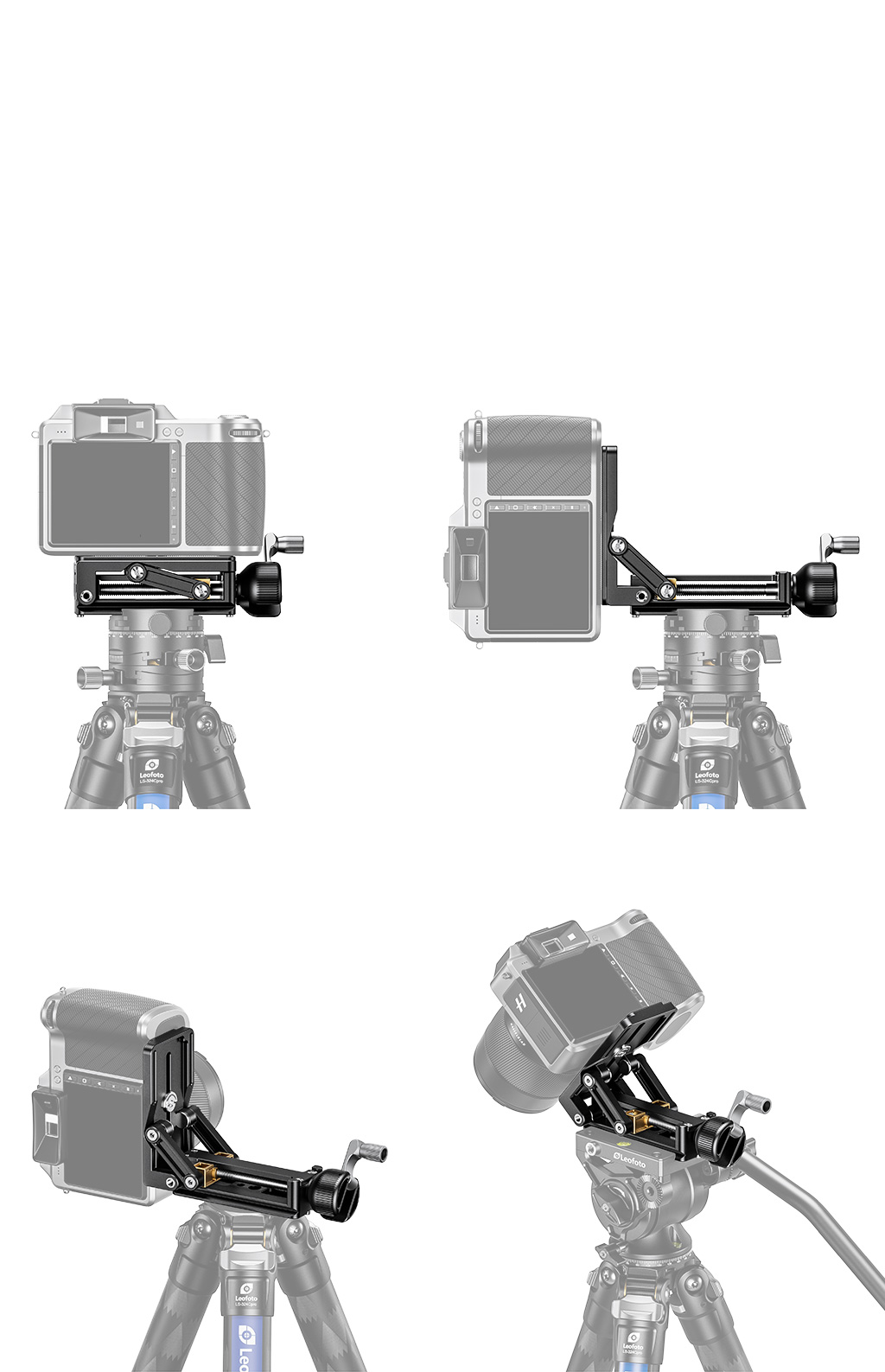

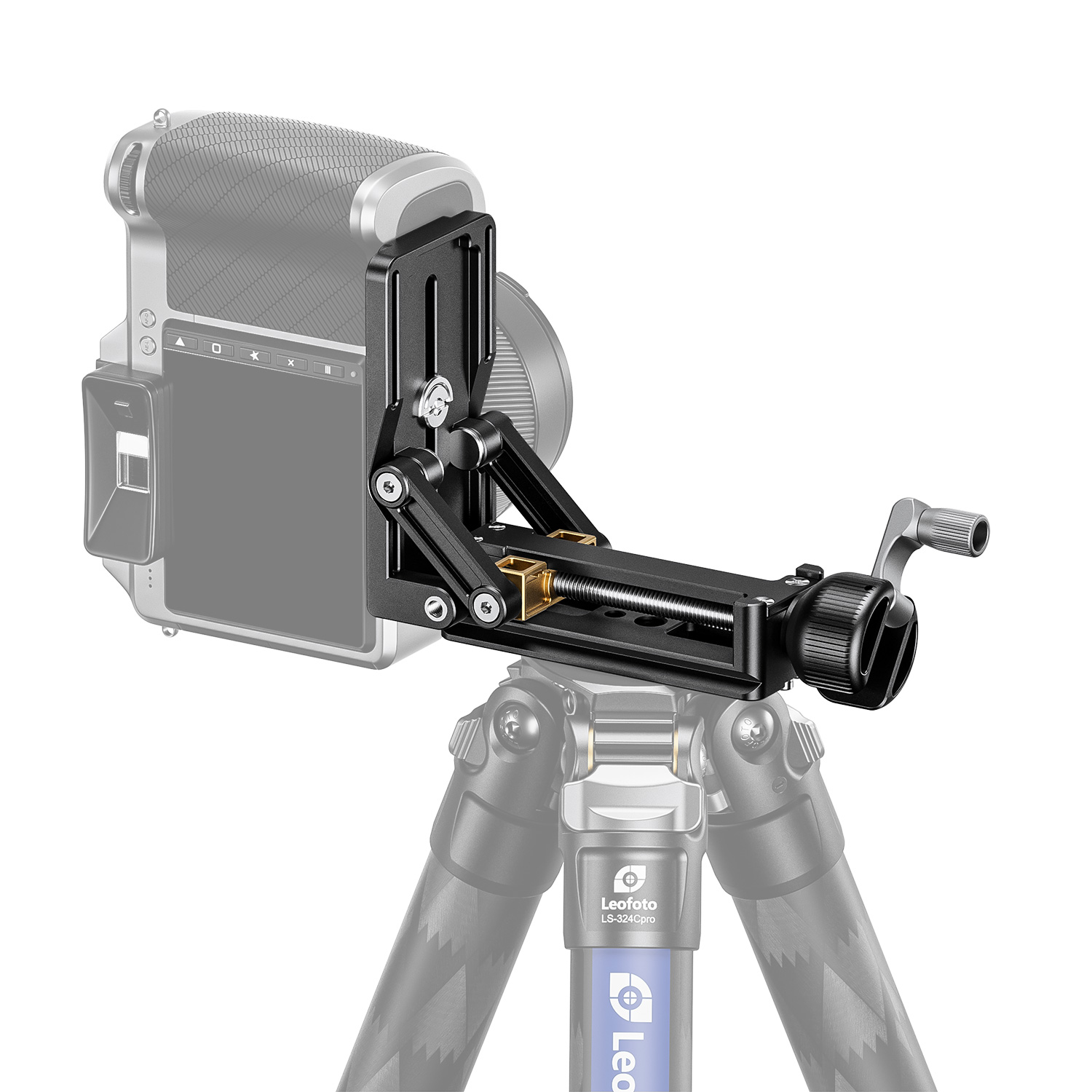

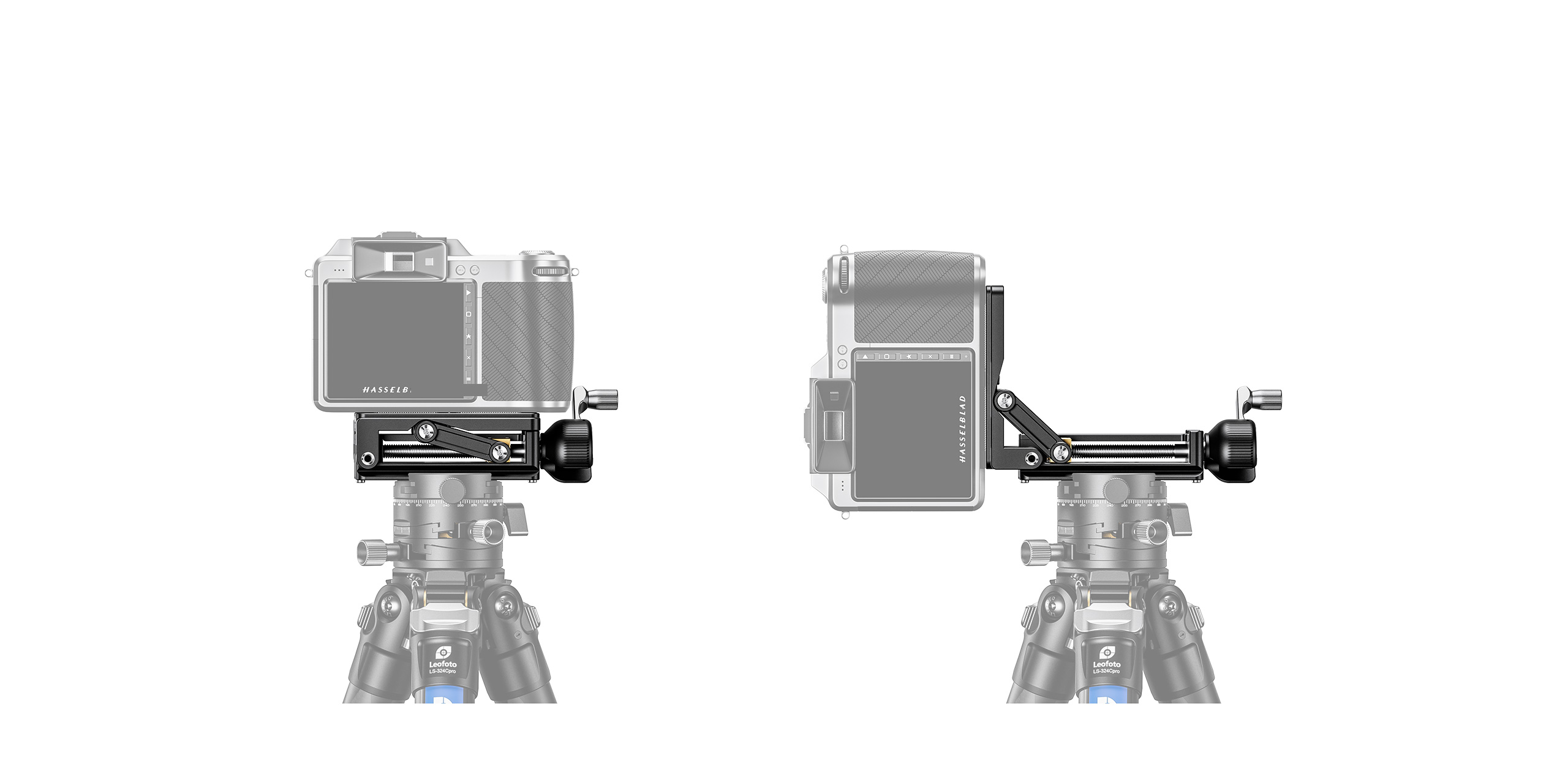

Smooth Tilt Adjustment with Precision Control.The BVL-02 Hand-Crank Precision Tilt Adapter offers a tilt range from 0° to 93°, with automatic locking — no need to manually tighten or release anything. It delivers smooth, accurate positioning for precise framing and creative control during shooting.
Universal Compatibility

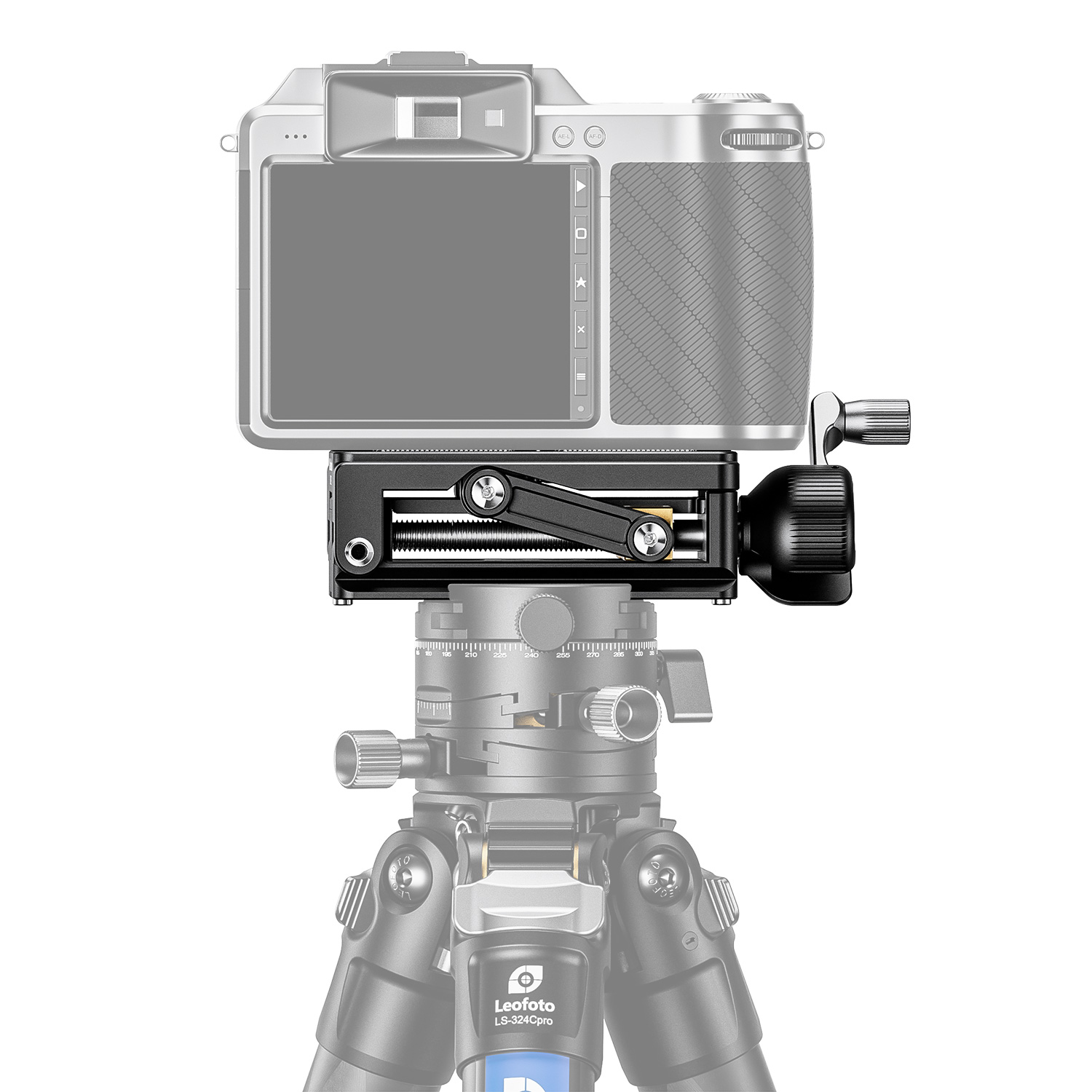

The base includes an Arca-Swiss-style dovetail mount for quick attachment to tripod heads, plus both 3/8″ and 1/4″ mounting threads for direct connection to tripods.
Compact and lightweight
20Kg stated maximum payload
Optional geared 360 degrees
Compatible with Arca-Swiss style components

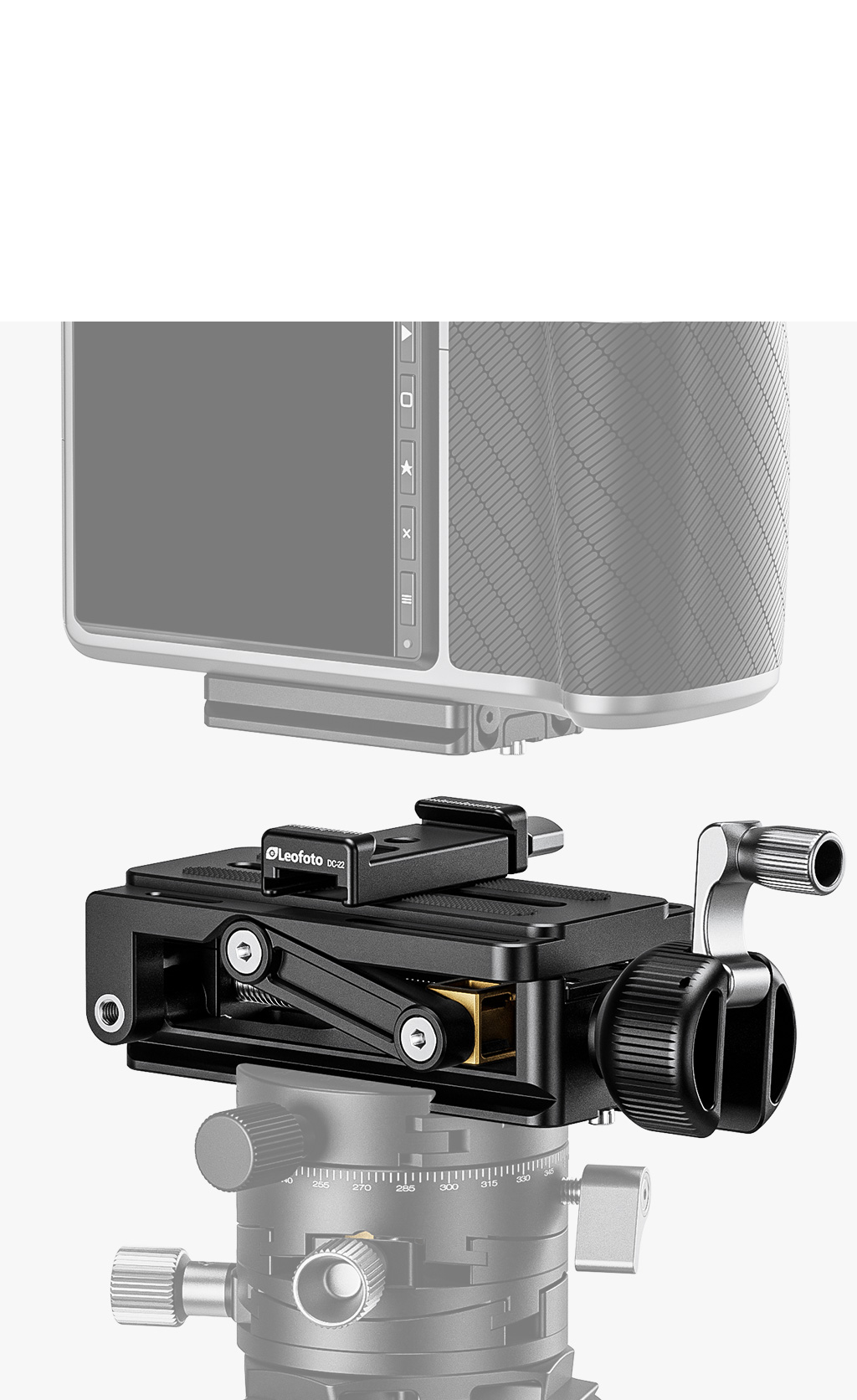

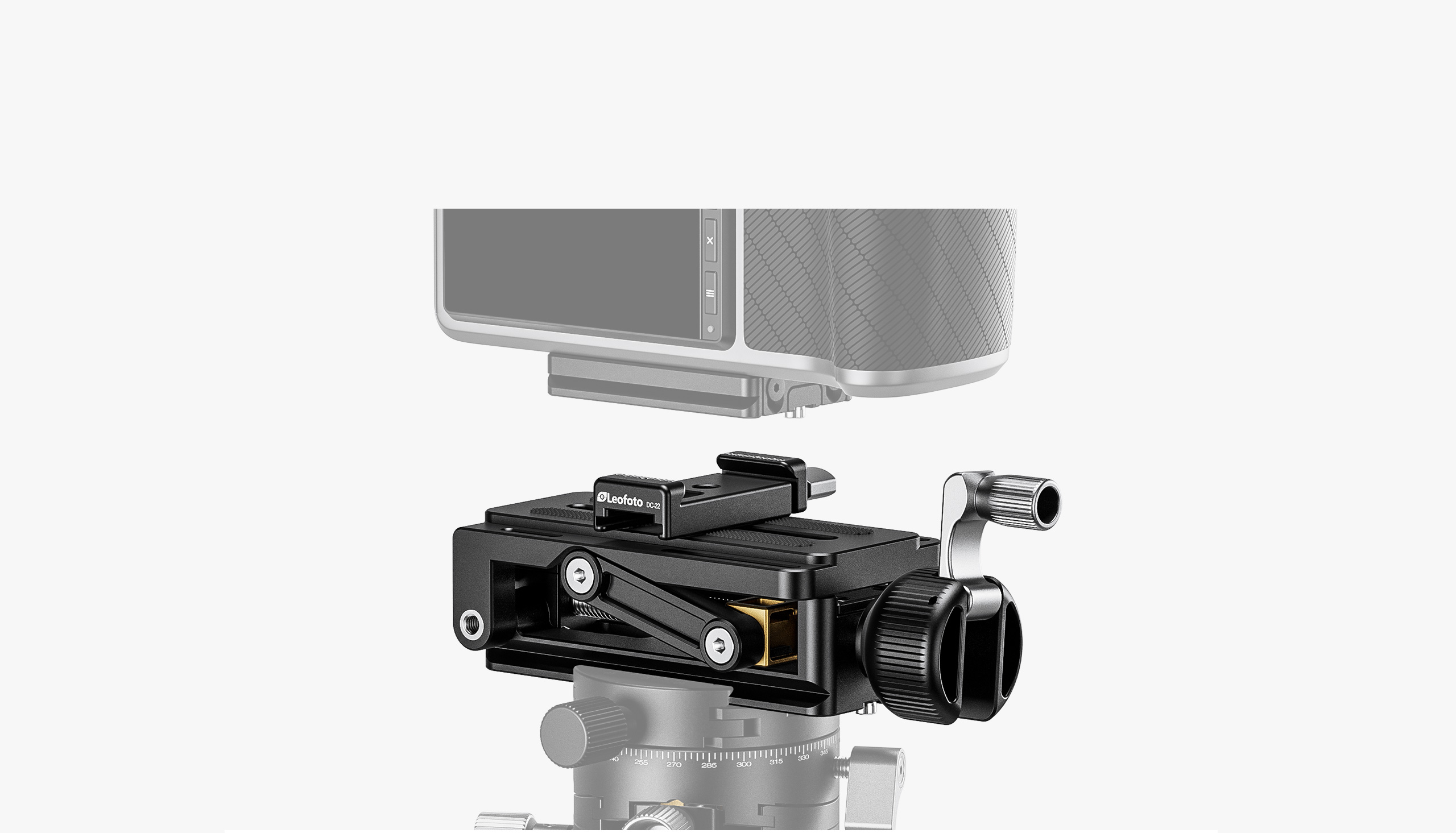

Quick Gear Mounting with Optional Clamp
Compatible with an optional quick-release clamp (sold separately) for fast equipment swaps — ideal for improving setup efficiency.
Compact and lightweight
20Kg stated maximum payload
Optional geared 360 degrees
Compatible with Arca-Swiss style components
Built-In Safety Mechanism

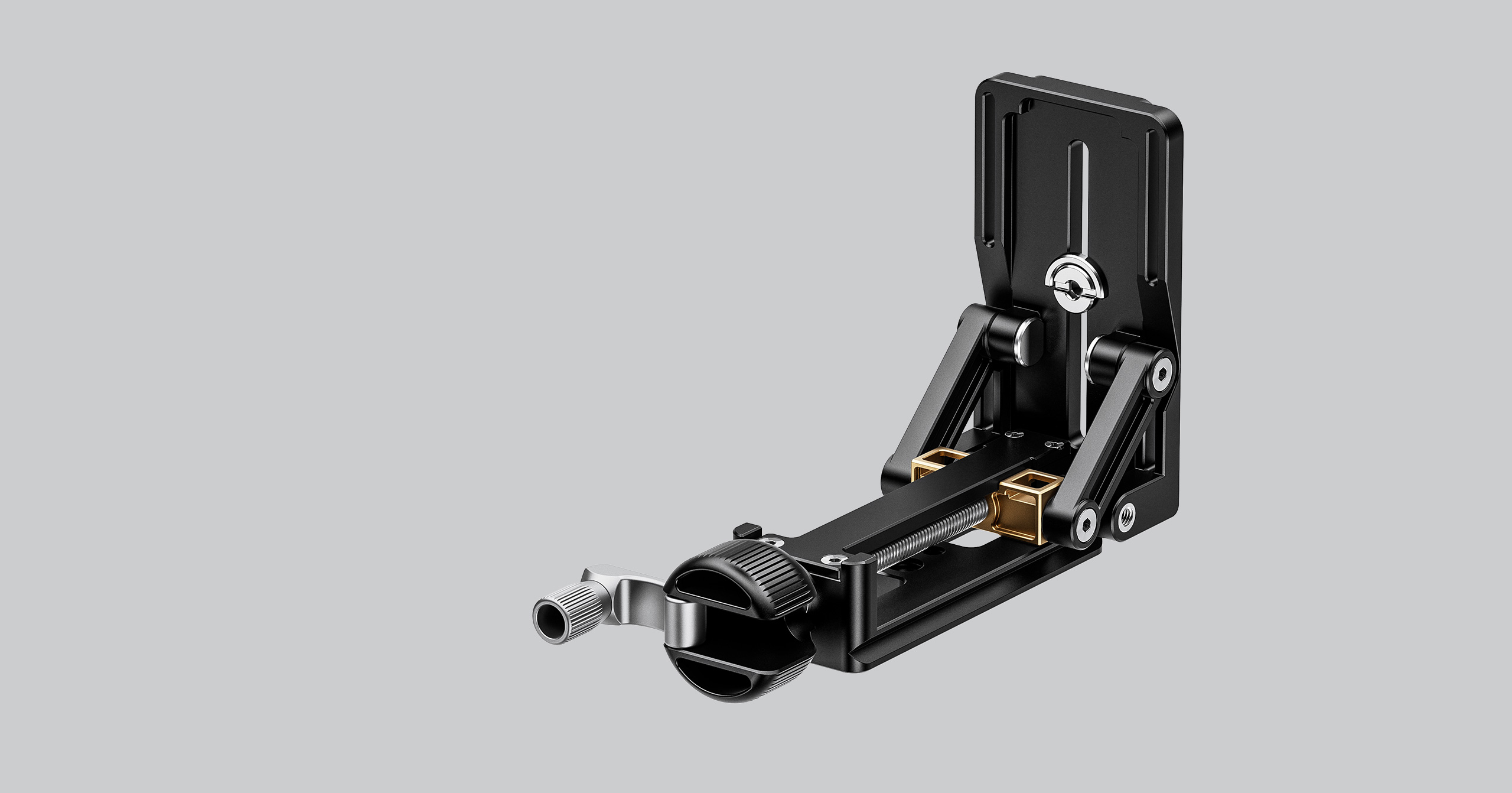

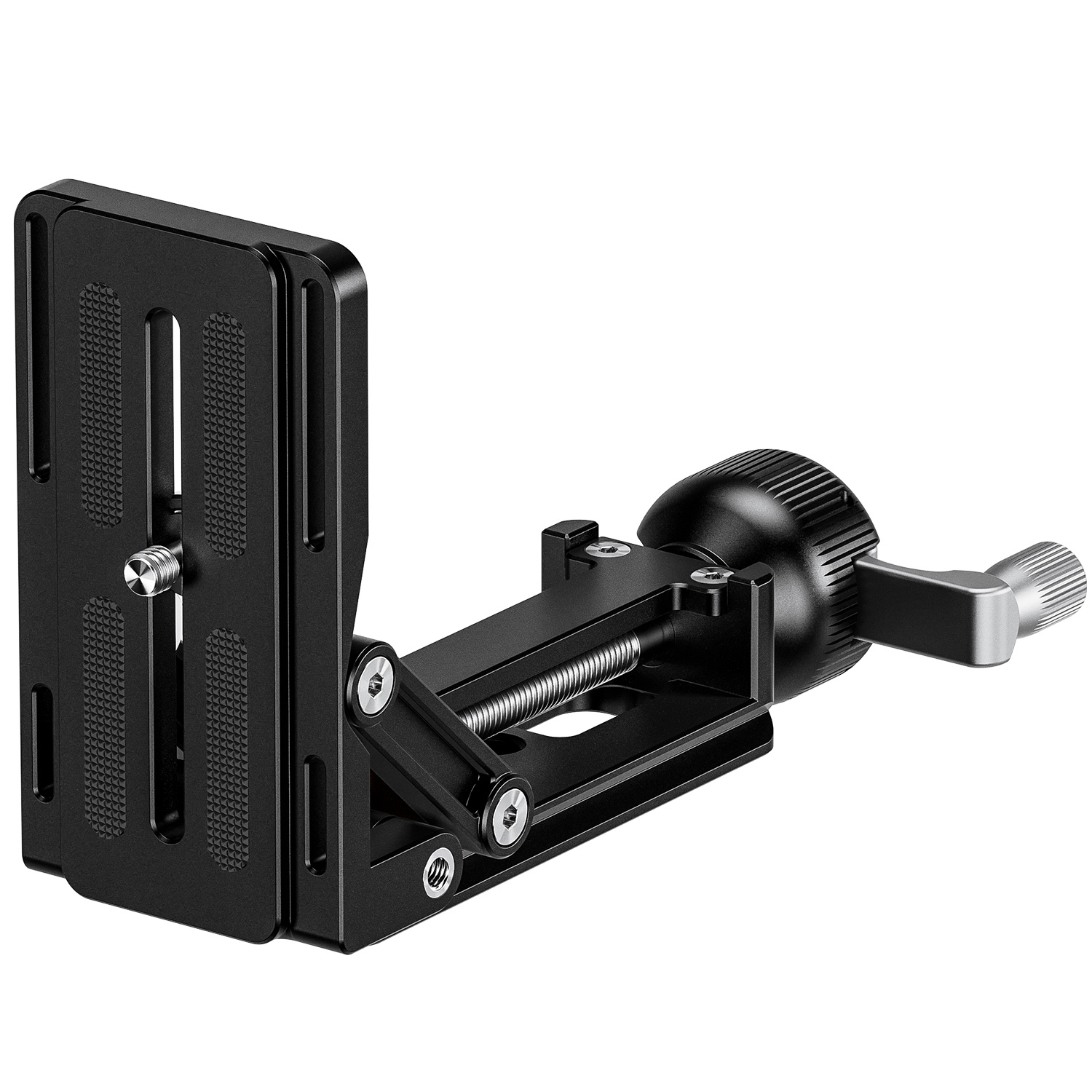

Features a high-precision stainless steel lead screw and brass slider for reliable performance and enhanced safety.

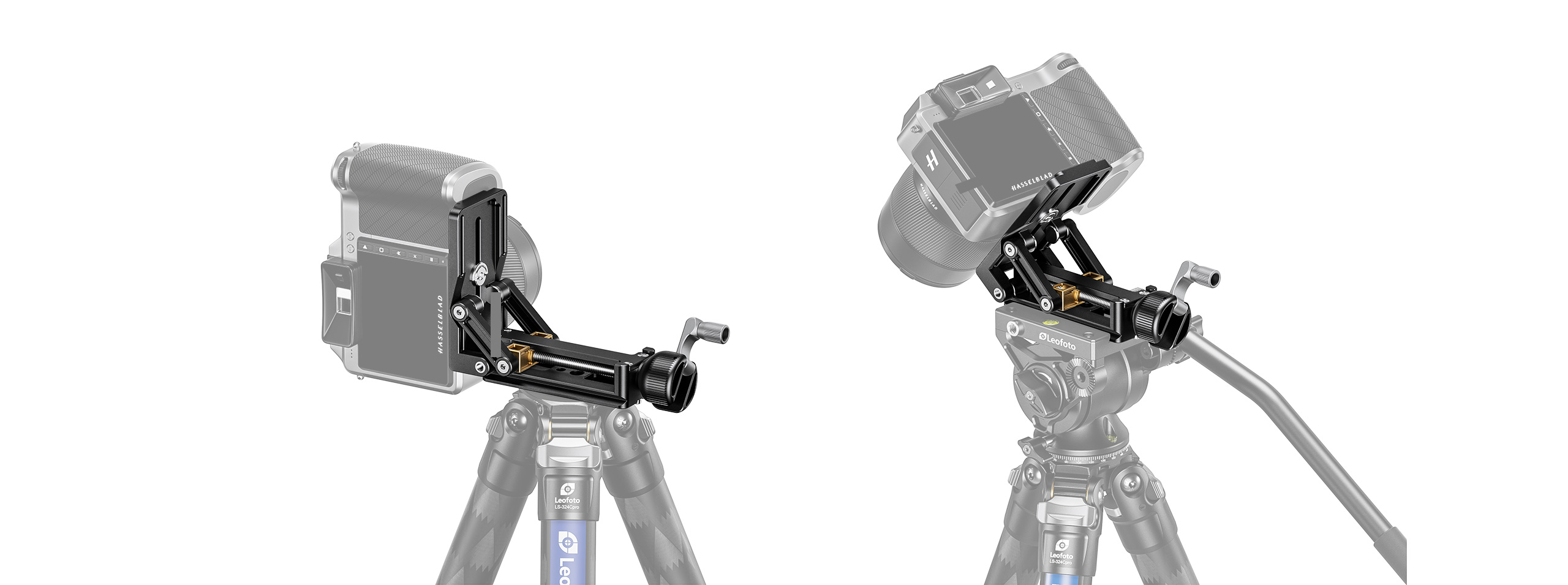

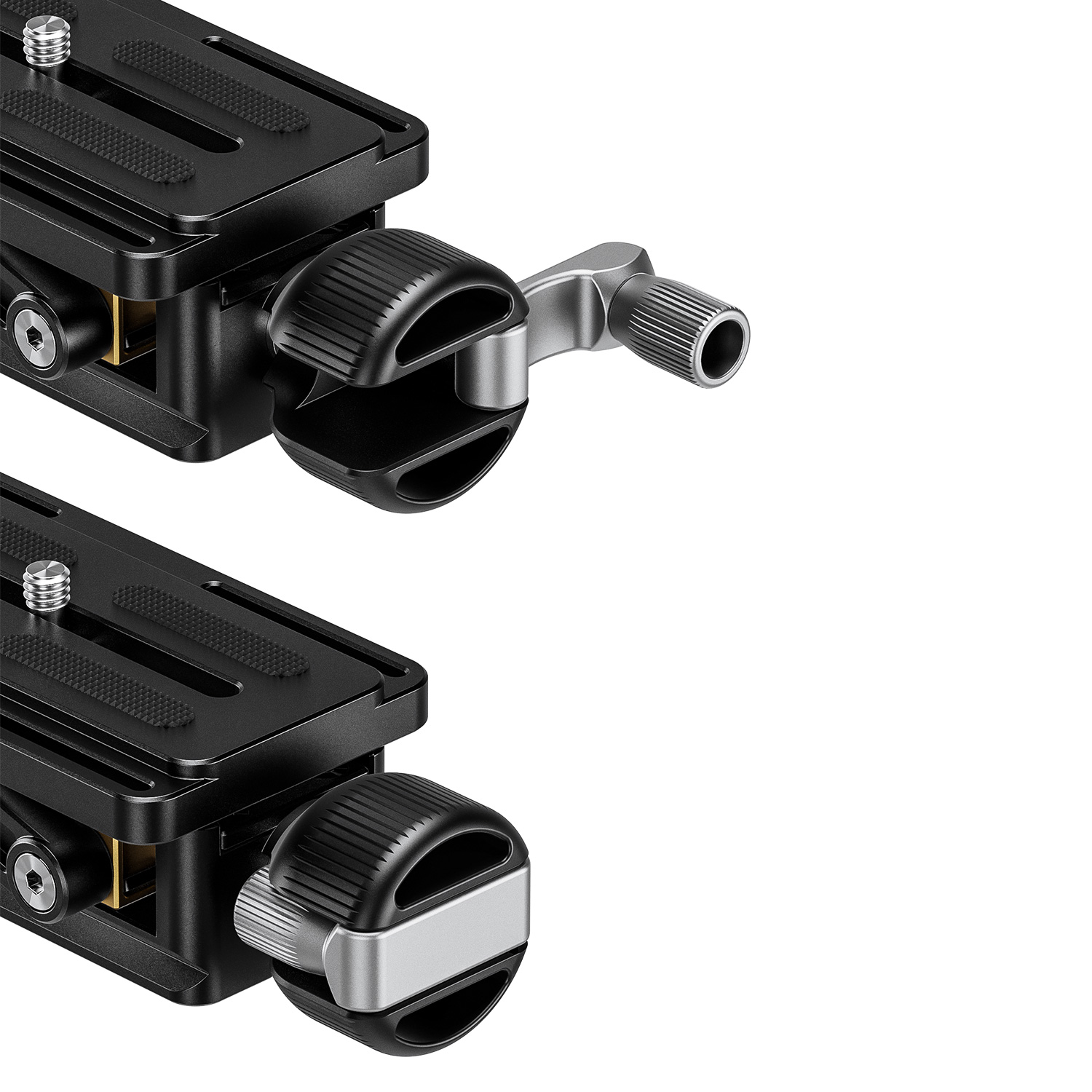

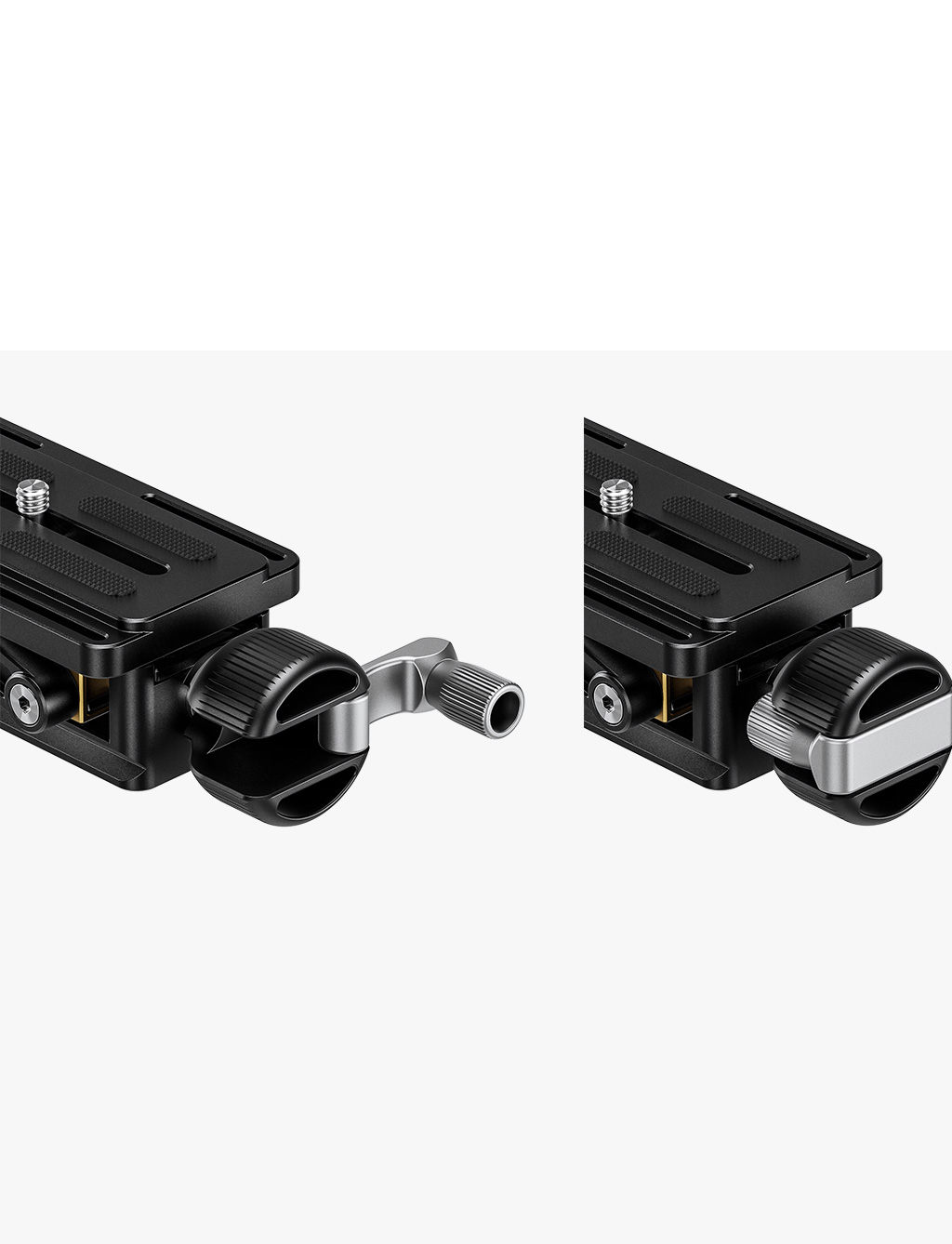

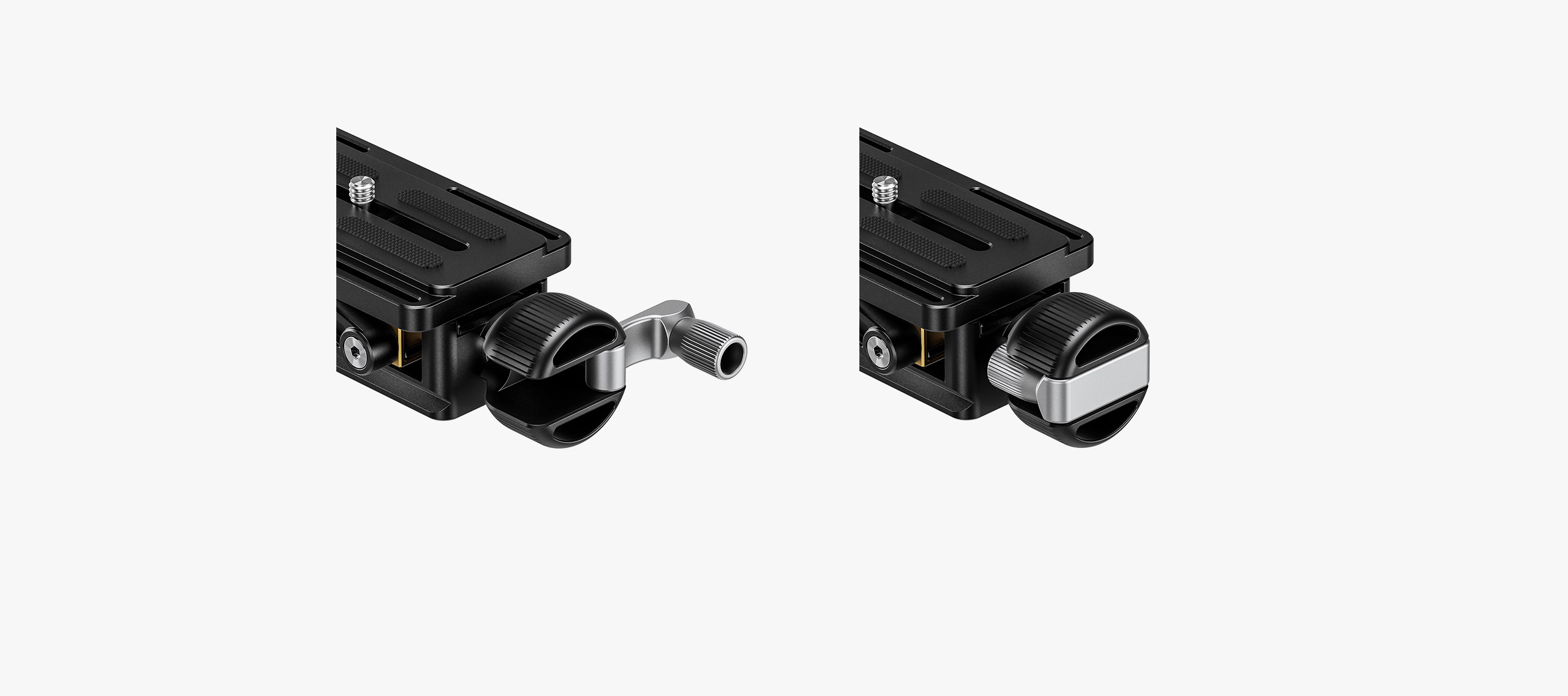

Two Control Modes
Crank Adjustment:
Extend the hand crank for quick, wide-angle tilt adjustments.
Knob Adjustment:
Retract the crank and use the control knob for precise, small-angle fine-tuning.
BVL-02
Geared panning adapter
This head can rotate the camera with great precision and does not move any angle at all.
Universal Compatibility
The base includes an Arca-Swiss-style dovetail mount for quick attachment to tripod heads, plus both 3/8″ and 1/4″ mounting threads for direct connection to tripods.
Quick Gear Mounting with Optional Clamp
Compatible with an optional quick-release clamp (sold separately) for fast equipment swaps — ideal for improving setup efficiency.
Built-In Safety Mechanism
Features a high-precision stainless steel lead screw and brass slider for reliable performance and enhanced safety.
Crank Adjustment:
Extend the hand crank for quick, wide-angle tilt adjustments.
Knob Adjustment:
Retract the crank and use the control knob for precise, small-angle fine-tuning.
Two Control Modes

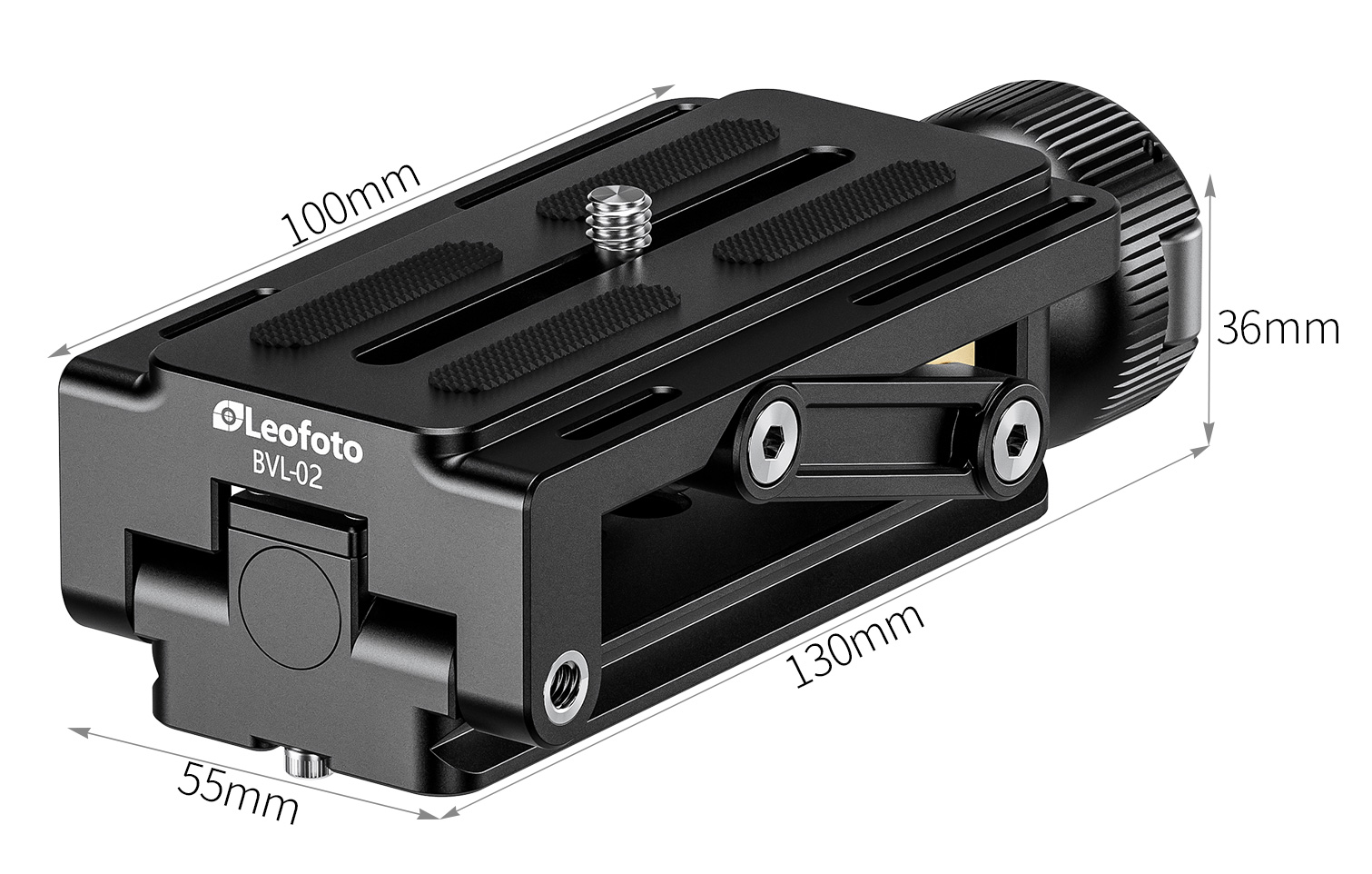

| 型号 | BVL-02 |
| 重量 | 0.32kg |
| 承重 | 10kg |
