Leofoto GC-282AL Geared Multi-Function Boom Arm | Geared Driven Extension Drive

2026-01-30

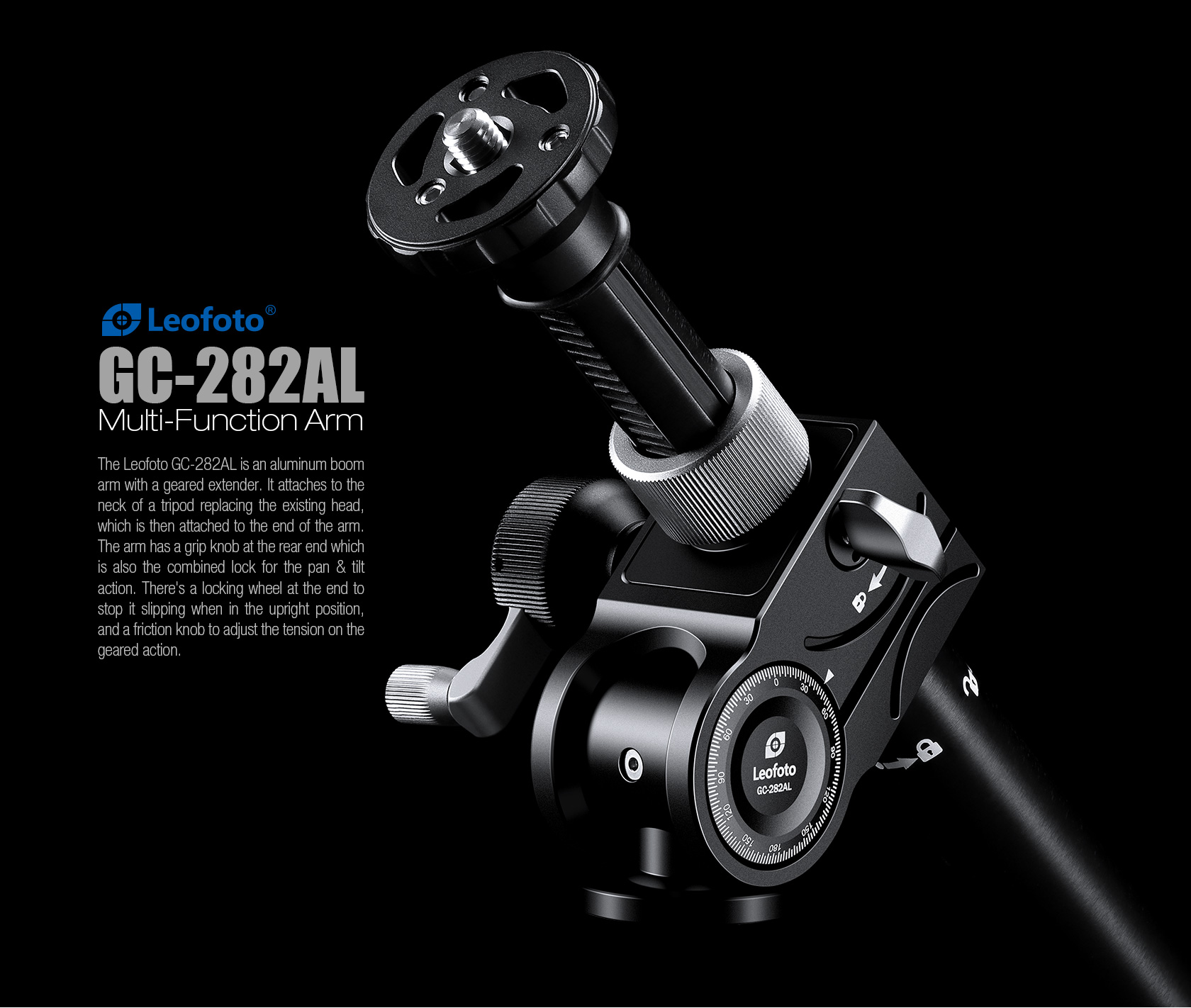

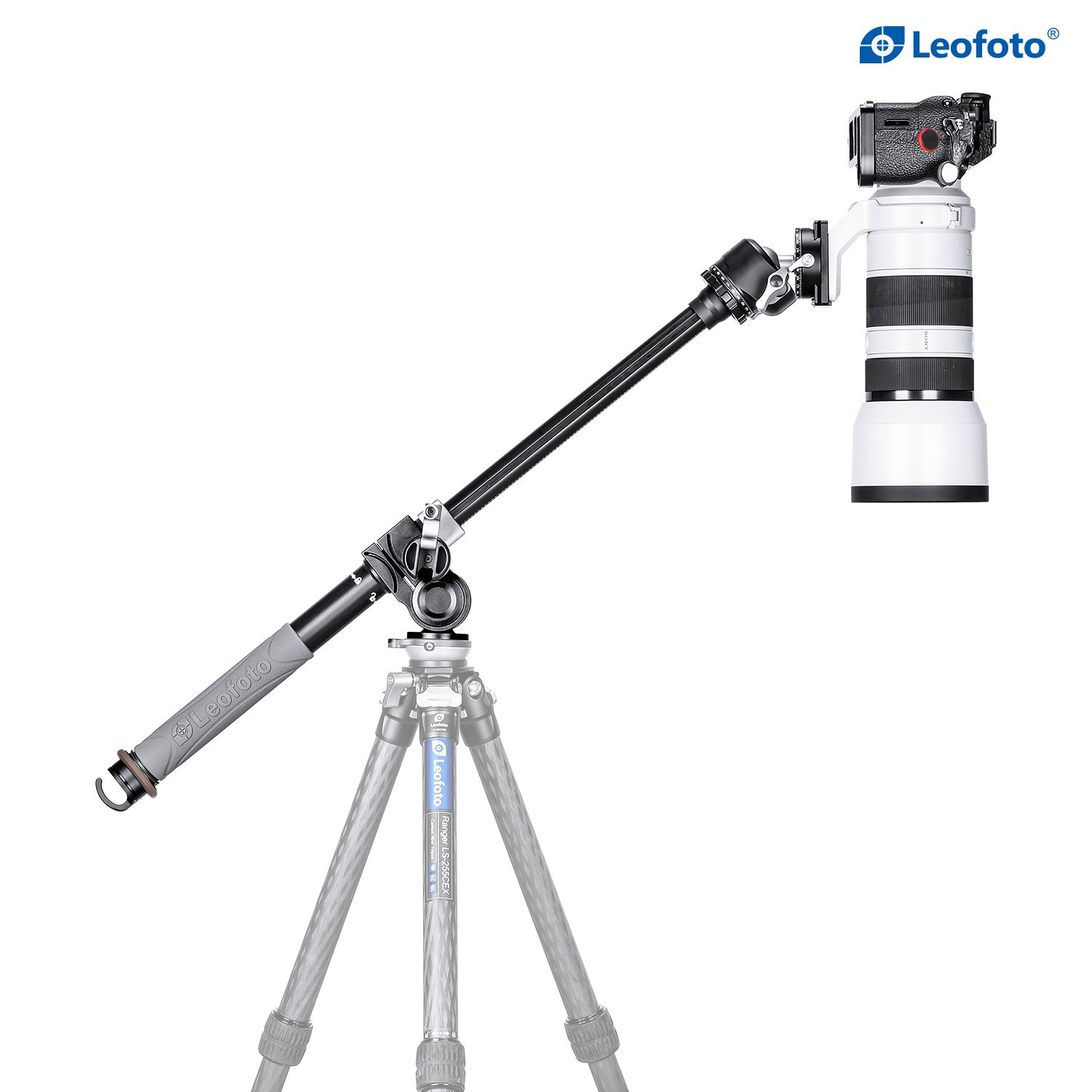

The  Leofoto GC-282AL Geared Multi-Function Boom Arm is an aluminum, gear-driven extension arm that adds lateral extension to virtually any tripod leg set. The base mounts to the top of any tripod with a 3/8″-16 threaded mounting stud

Precise Movement and Positioning

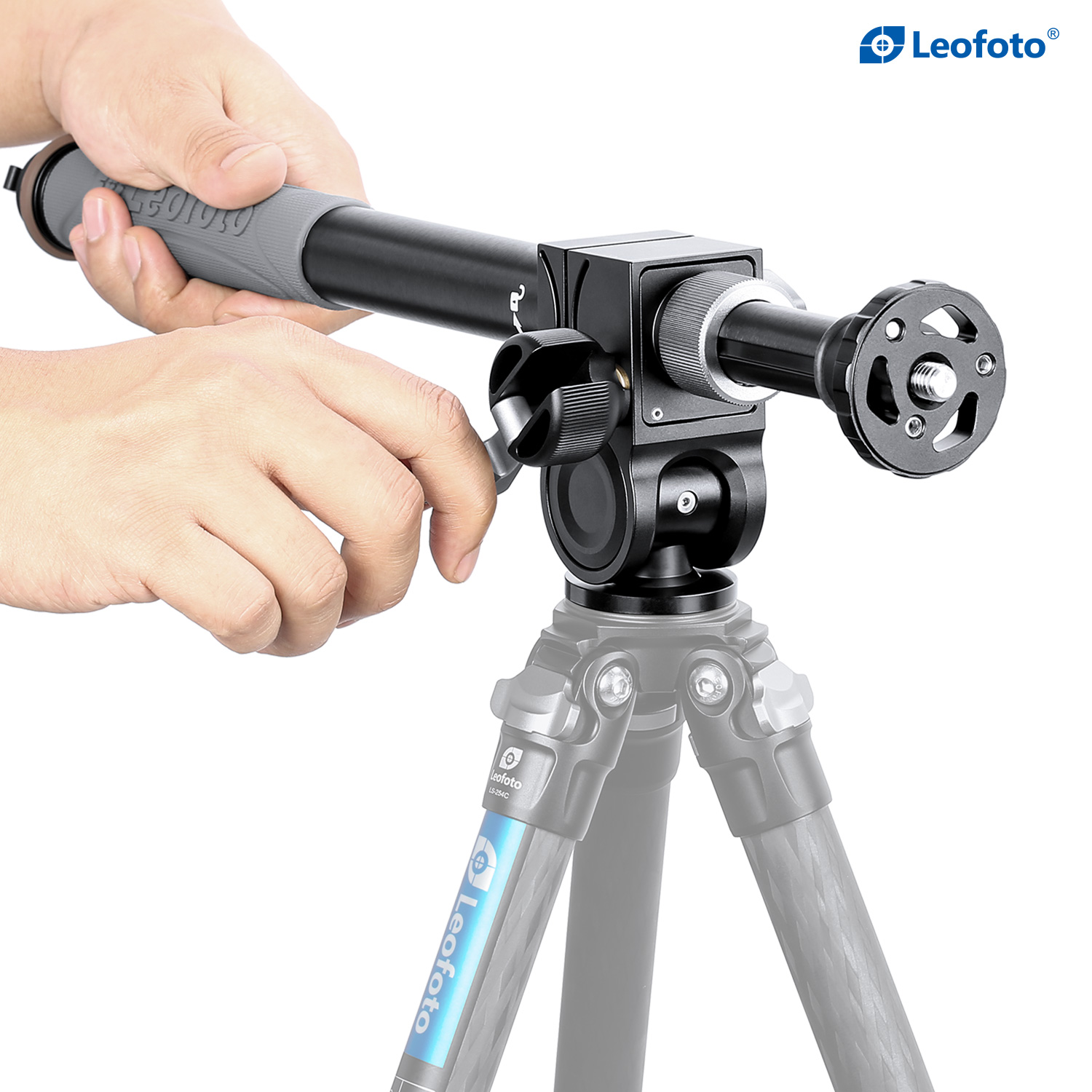

  • Aluminum column has a gear-driven extension drive
  • Each turn of the crank handle delivers 14mm of movement
  • Precision adjustment possible

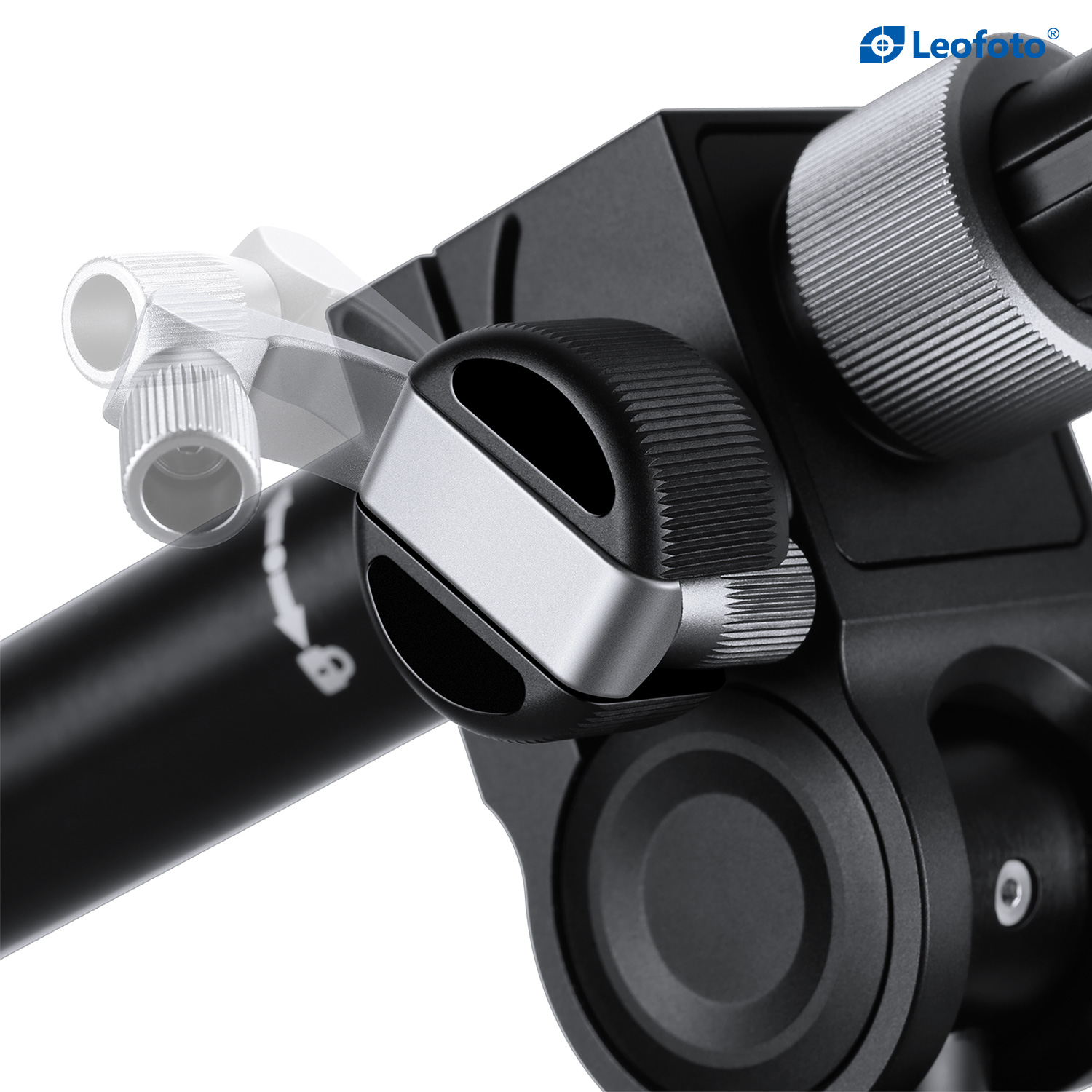

  • Twist-lock joint to hold the extended arm in place
  • Folding crank handle

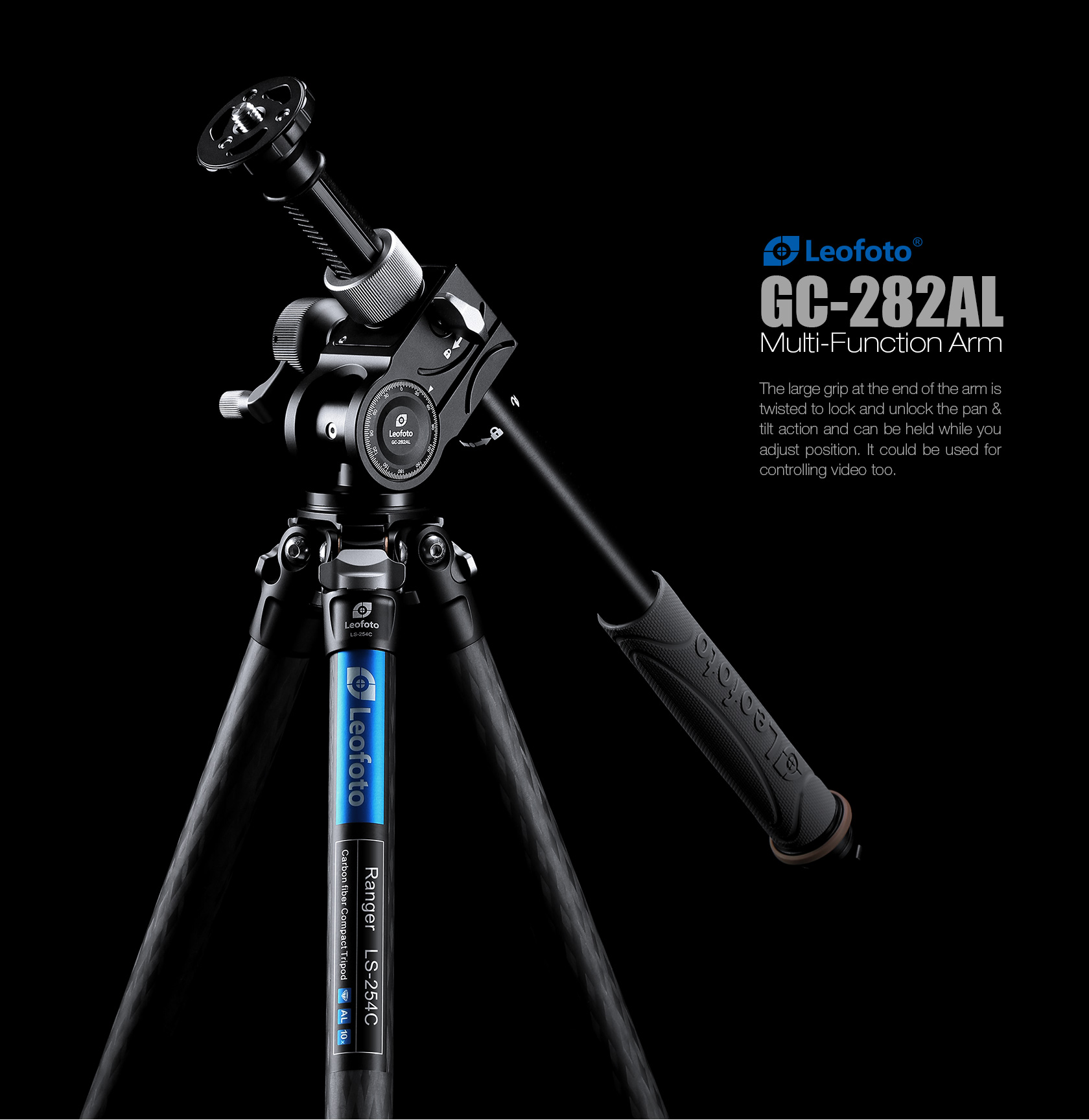

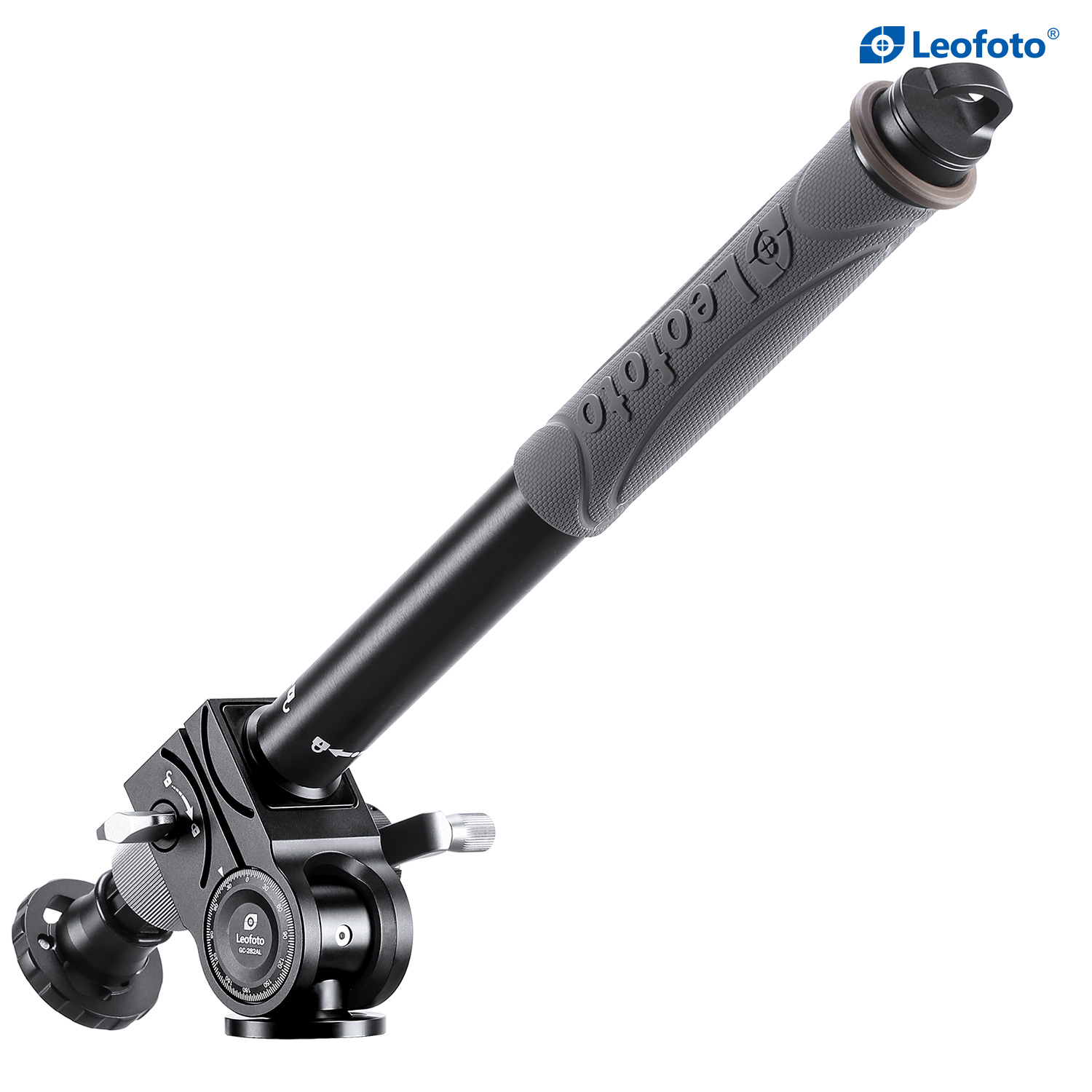

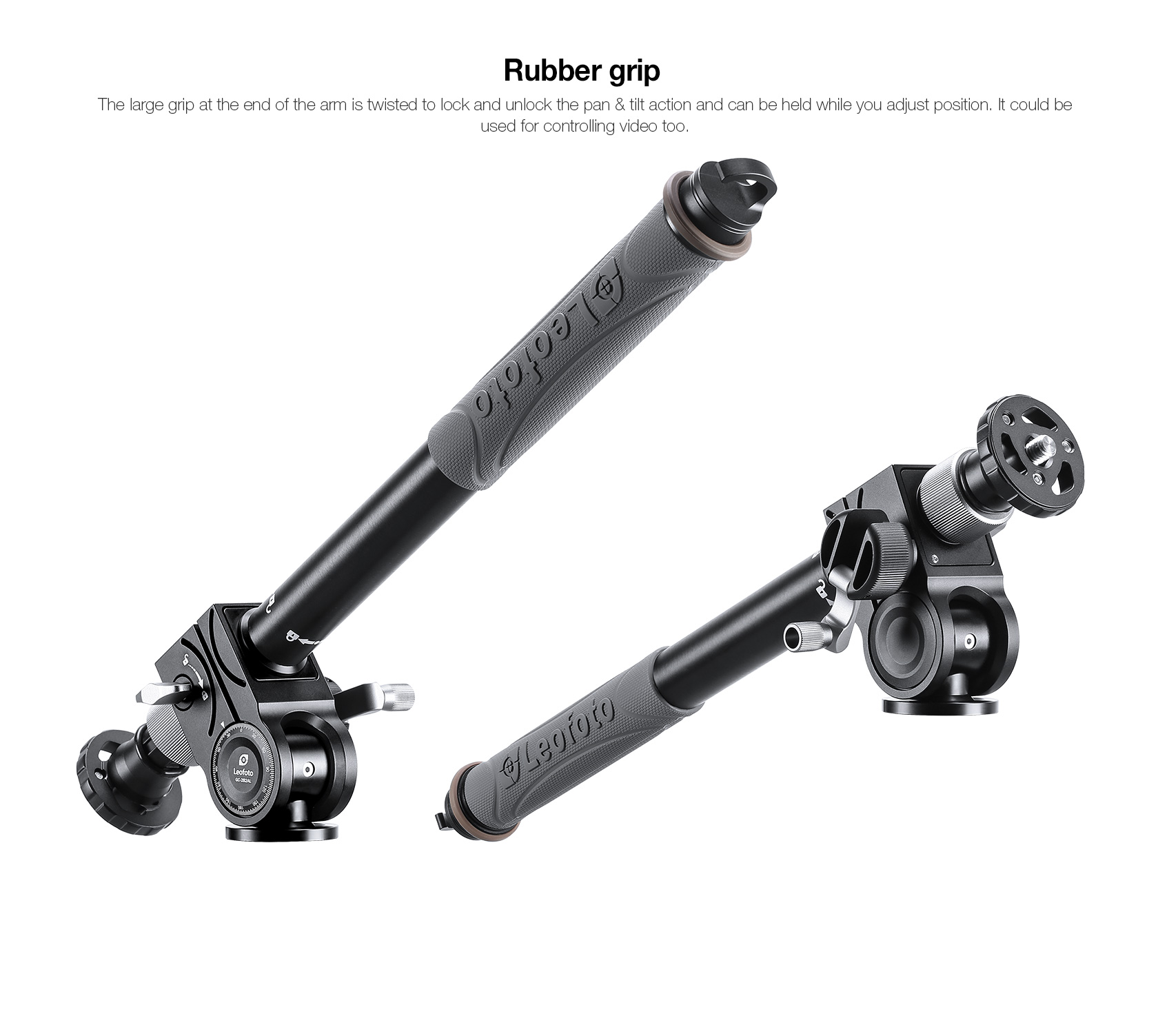

Pan and Tilt Control with Large Rubber Grip

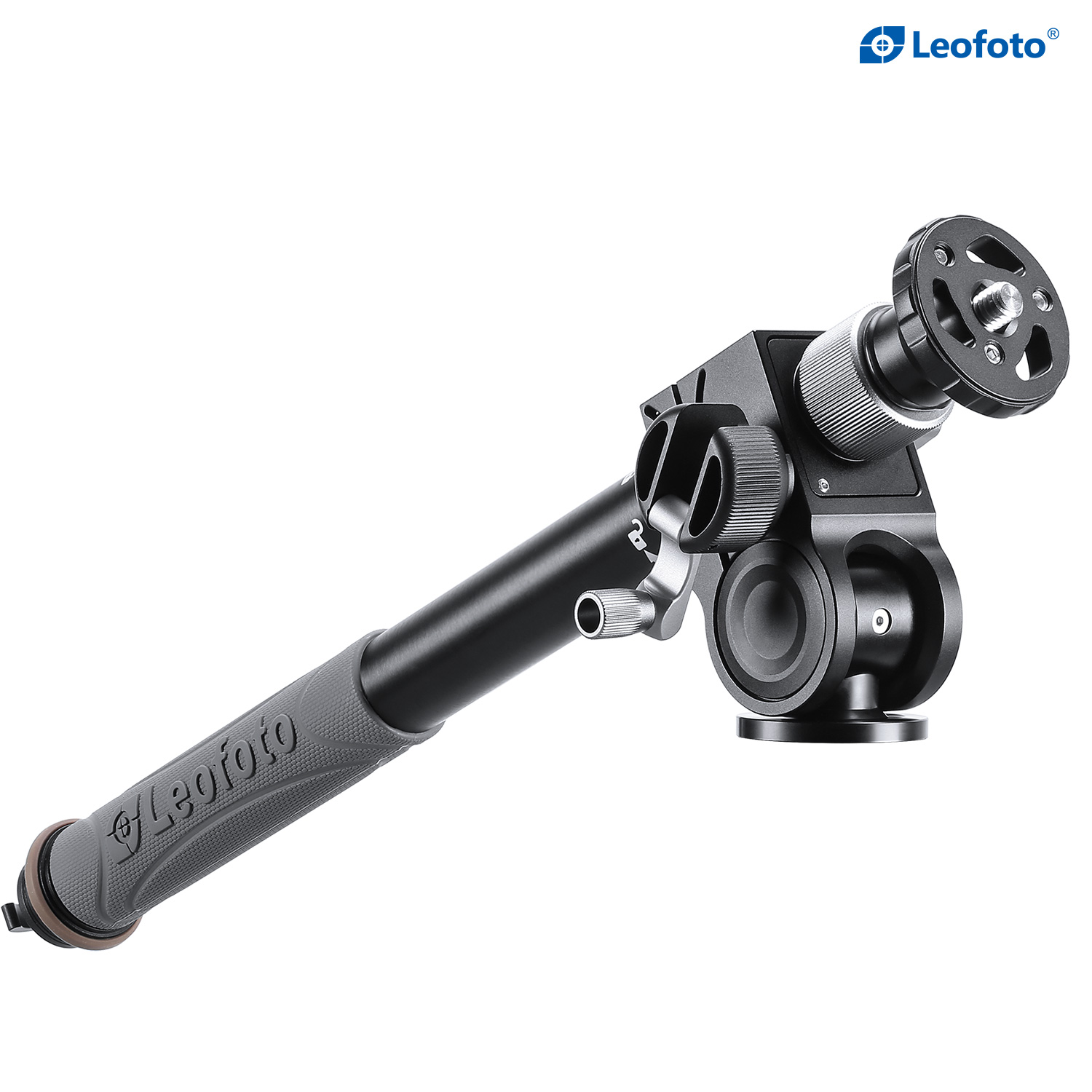

  • Pan handle features large ergonomic rubber grip
  • Textured surface for maximum traction
  • Twist handle to lock and unlock pan and tilt action
  • Pan and tilt action released simultaneously

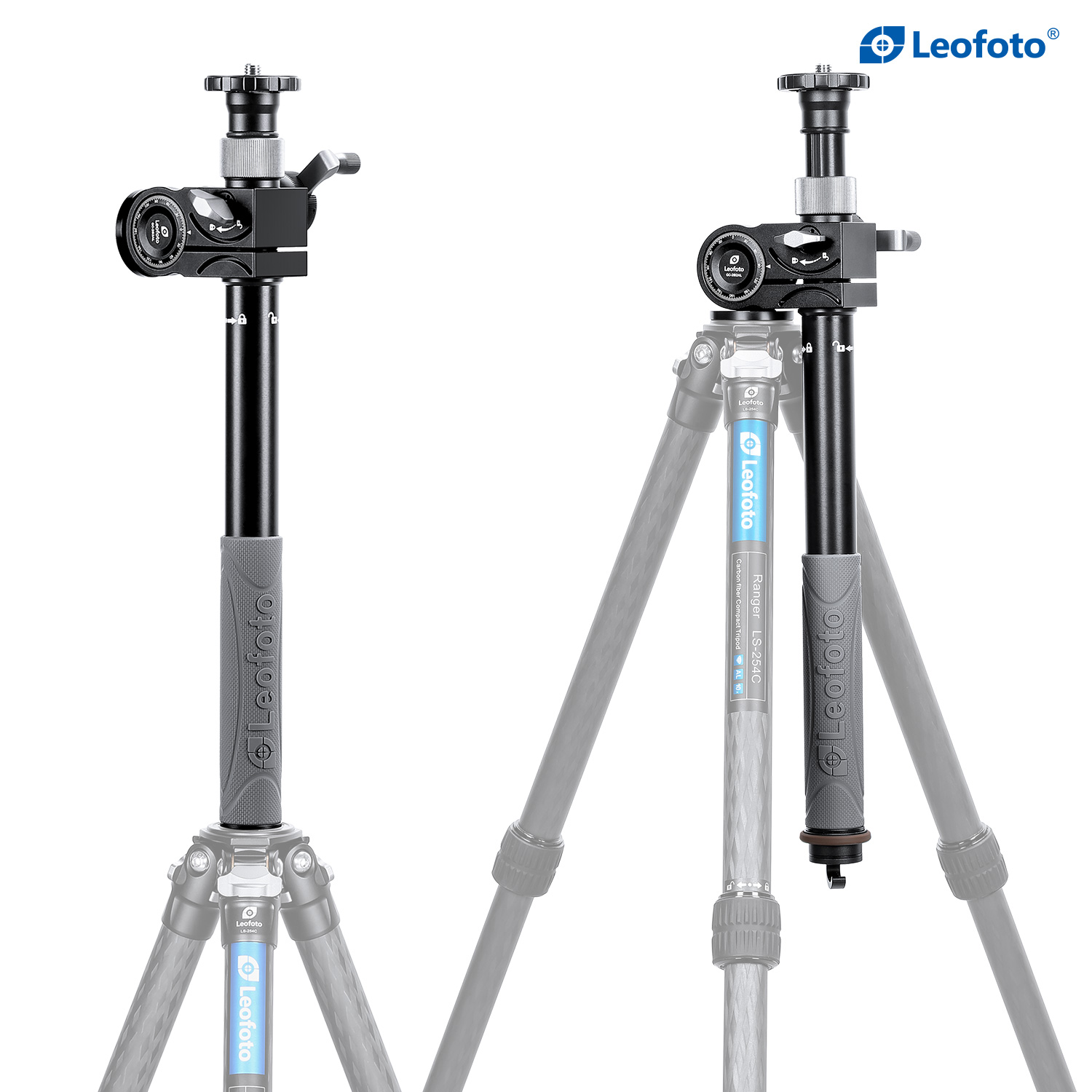

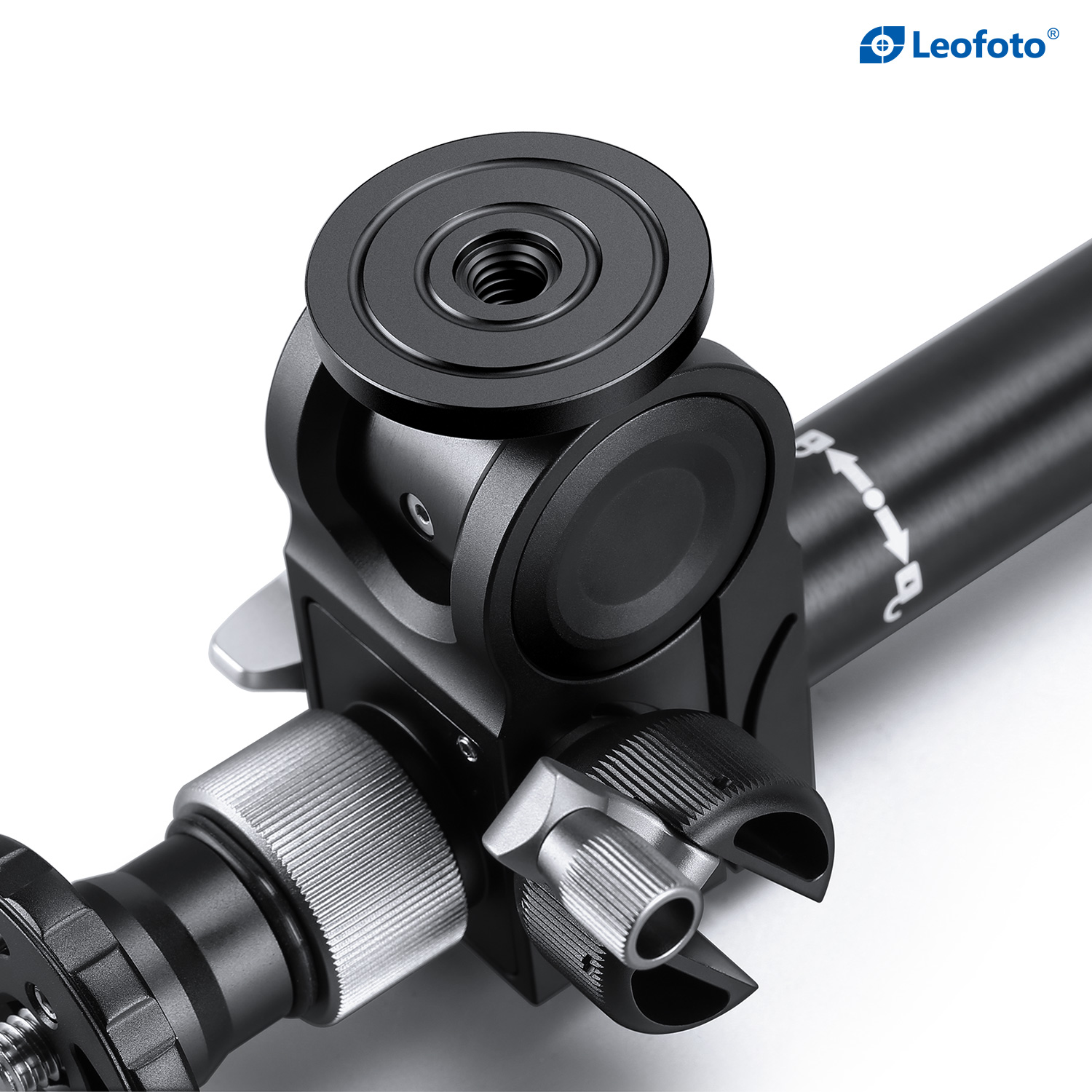

Convertible Pan Tilt Arm / Center Column
  • Tilting base with 3/8″-16 mounting thread
  • Removable ballast hook with 3/8″-16 mounting screw
  • 16-25″ lateral or vertical column extension
  • 6.6 lb load capacity

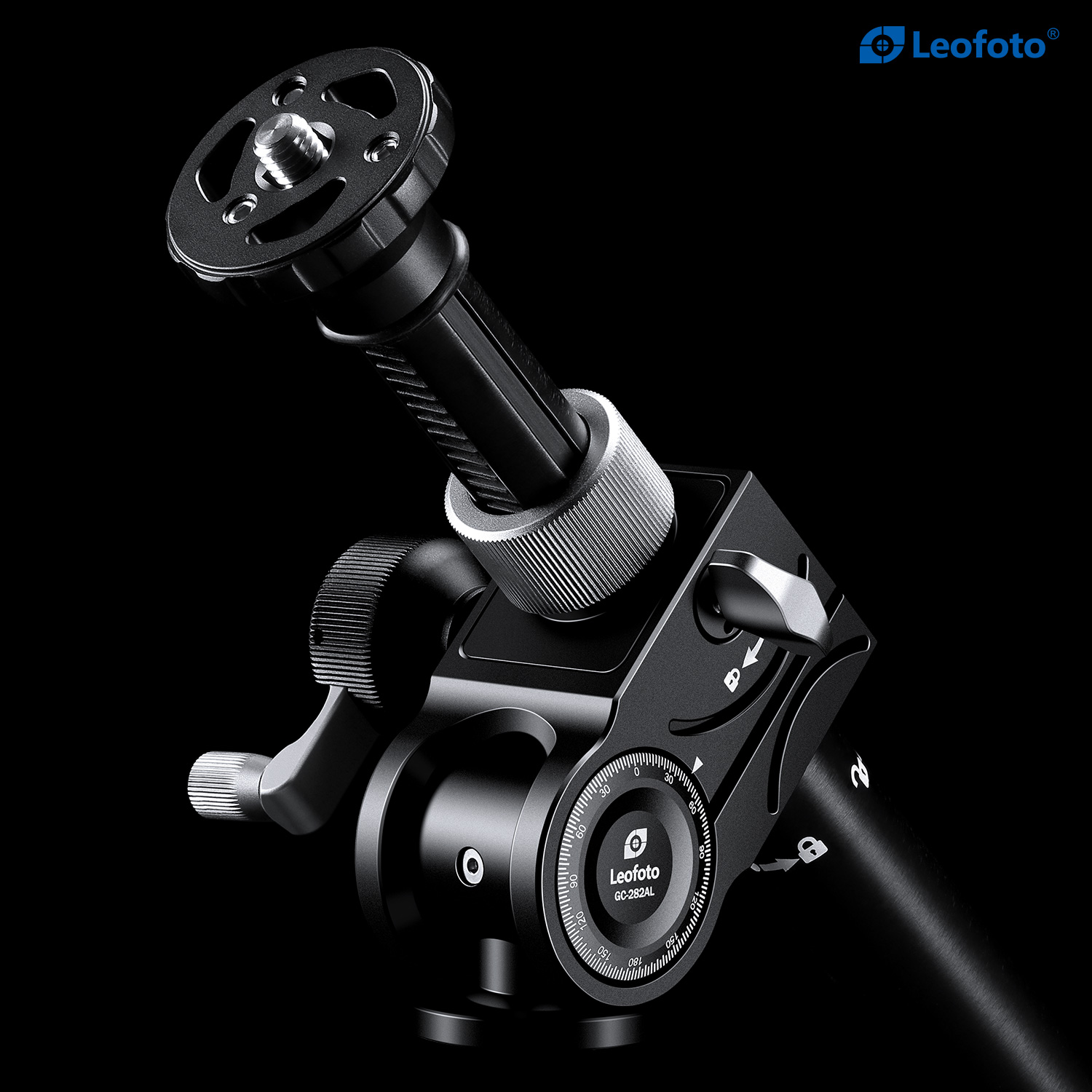

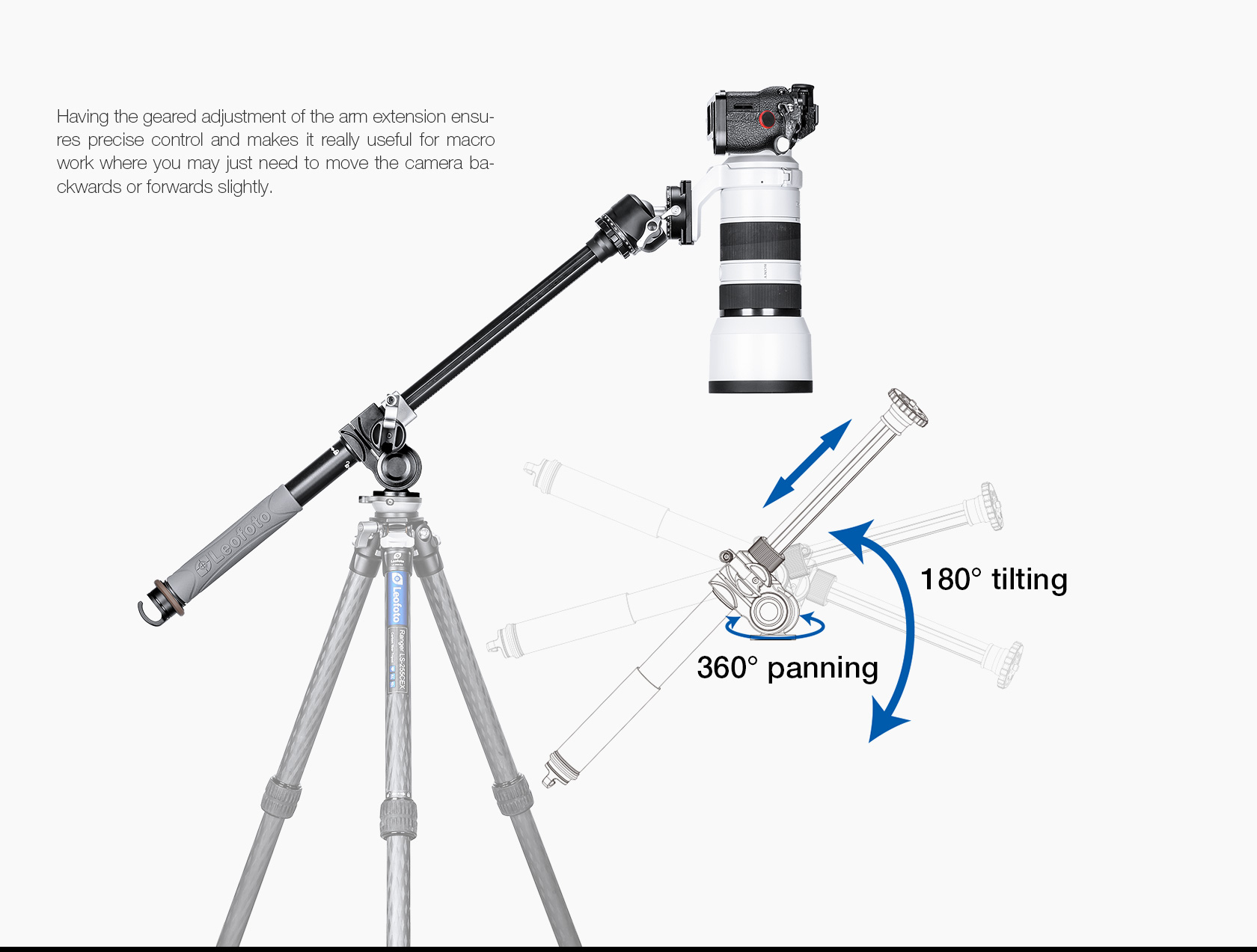

180° Tilt and 360° Panning Range
  • Precision numbered tilt scale
  • Useful for macro imaging
  • Precise control of lateral extension
  • Column extension locking lever

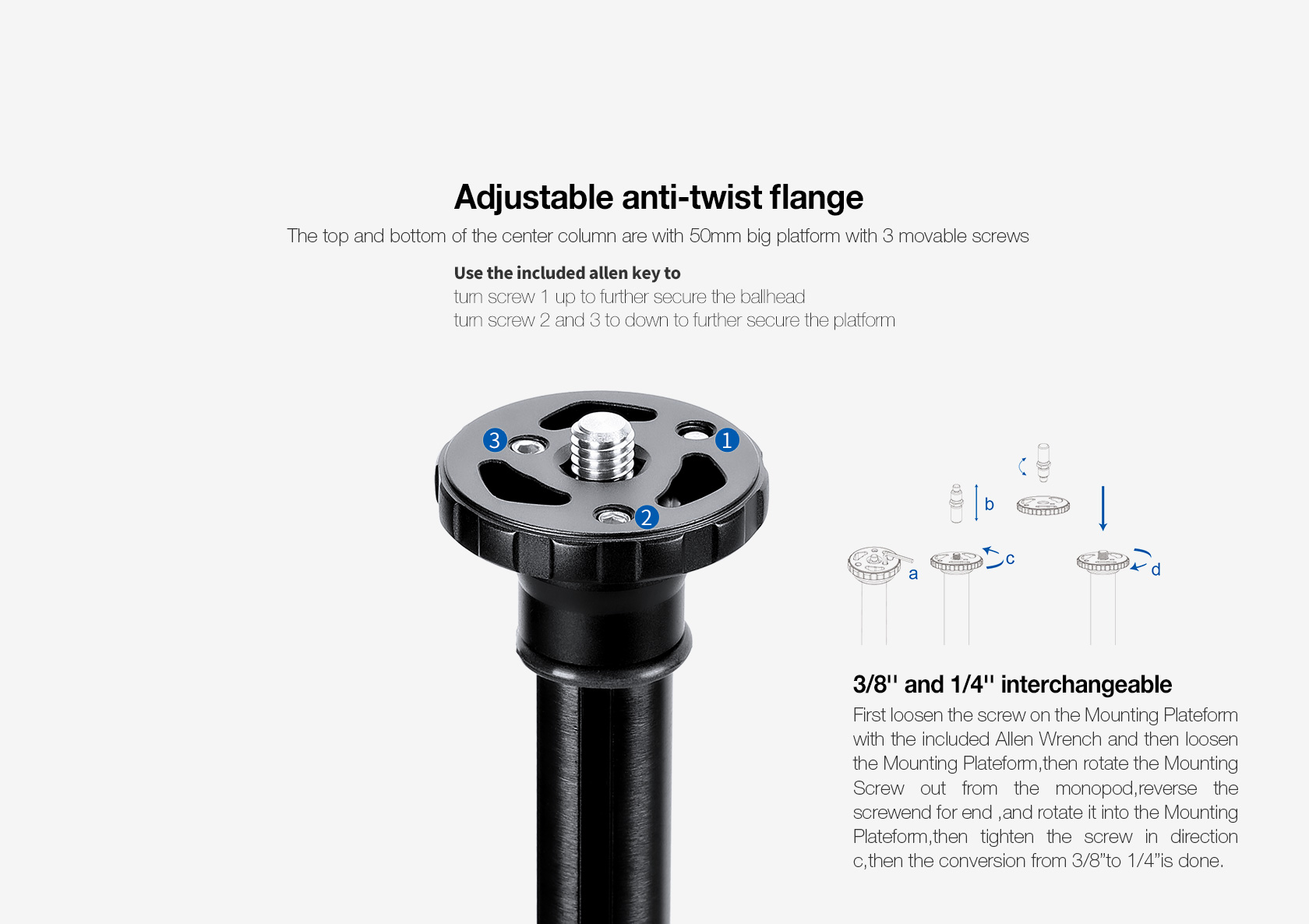

Anti-Twist Head Flange and Reversible Head Mounting Screw
  • Large 50mm head platform
  • 2 locking Allen screws prevents head platform movement
  • 1 locking Allen screw prevents tripod head movement
  • Reversible 3/8″-16 to 1/4″-20 tripod head screw
  • Compatible with virtually any tripod head

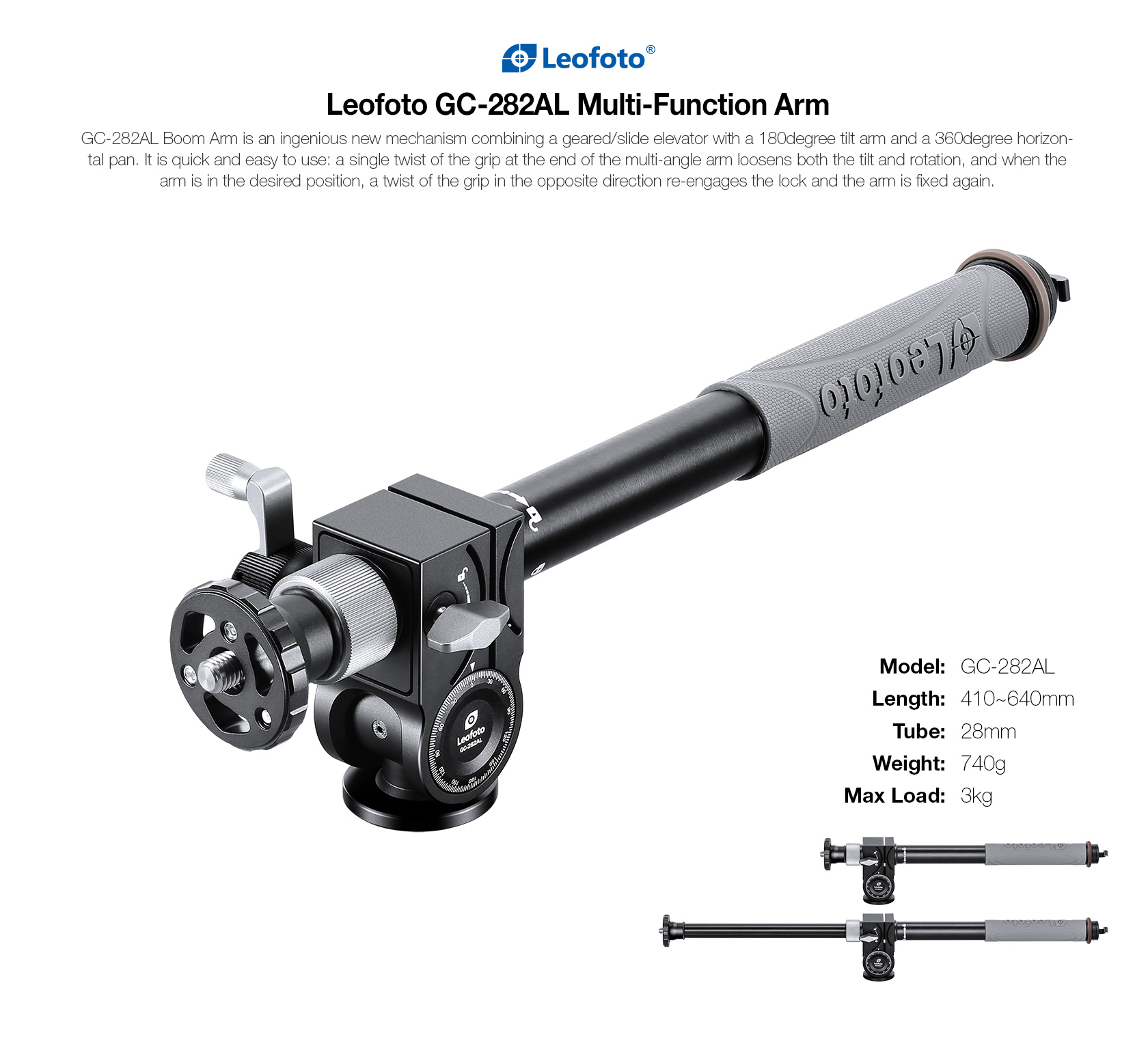

Leofoto GC-282AL Geared Multi-Function Boom Arm:

  • Length: 410mm-640mm (16″-25″)
  • Tube Diameter: 28mm (1.41″)
  • Weight: 740g (26oz). Max Load: 3kg (6.6lb)
